ECP Series Videoscope Probe

ECP Series Videoscope Probe

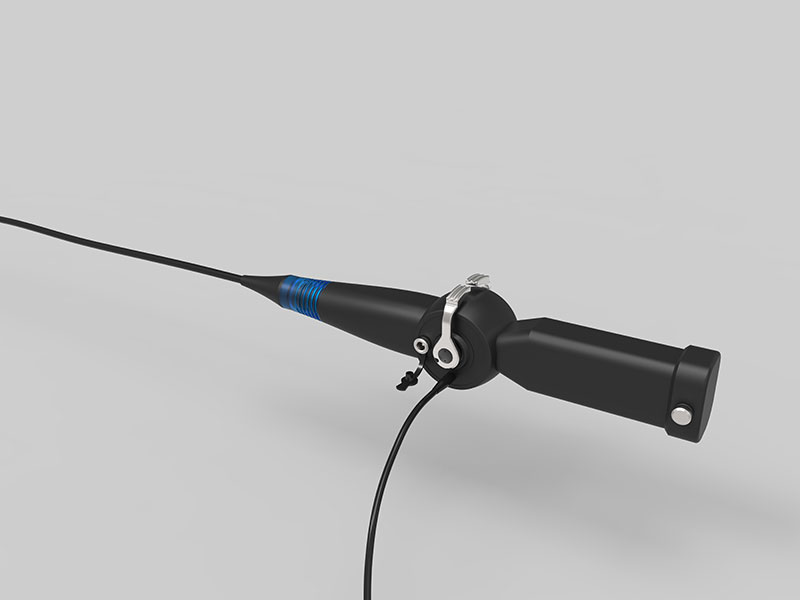

ECP series videoscope probe is designed with standard USB video output, and can be used with ECP10 monitor to display. It supports PC USB port, phone USB port. This series videoscope probes are available in 6.5mm/6.0mm, 3.9mm, 3.1mm, 2.4mm with mega HD pixels.

Specifications
  • Categories: Industrial Videoscope / Endoscope; Rigid or Fiberscope Use
  • Model: ECP Probe Series
  • Diameter: support 6.5mm/6.0mm, 3.9mm, 3.1mm, and 2.4mm with mega HD pixels
  • Articulation: 4-way mechanical control articulation
  • Video output: standard USB video output, PC USB port, phone USB port, and ECP10 monitor
  • IP level: IP67 (probe/camera)
ETA SPECIFICATION
ECP Probe Series Diameter Ø2.4mm Ø3.1mm Ø3.9mm Ø6mm/Ø6.5mm
Camera Pixels 160,000 pixels 400*400 720P pixels 1280*720 2 Mega pixels 1980*1080
Optical FOV 90° 120°
DOF 5mm -80mm 10mm-100mm or others
View Direction direct view direct view & side view dual camera
Articulation 180° 2-way mechanical 360° 4-ways mechanical
Probe Tungsten braid, durable 4-layer construction
Length 1-1.5 meters 1-3 meters
