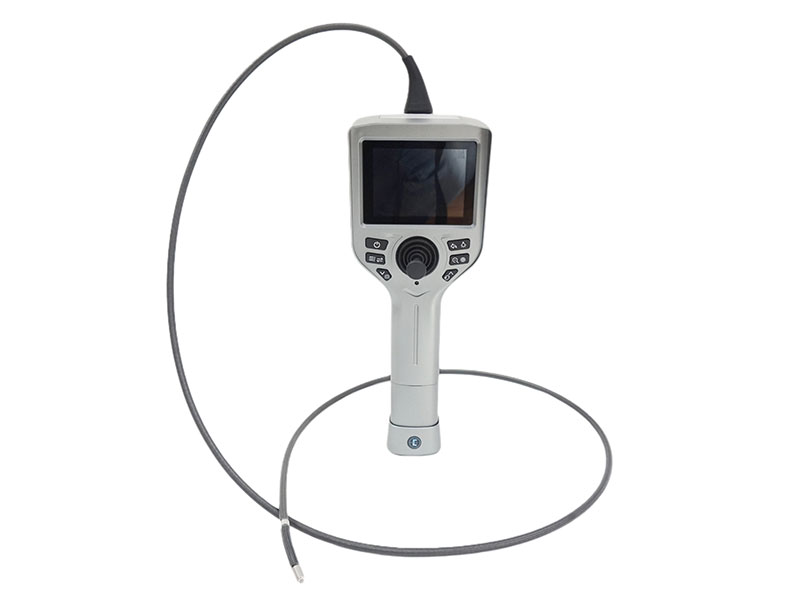

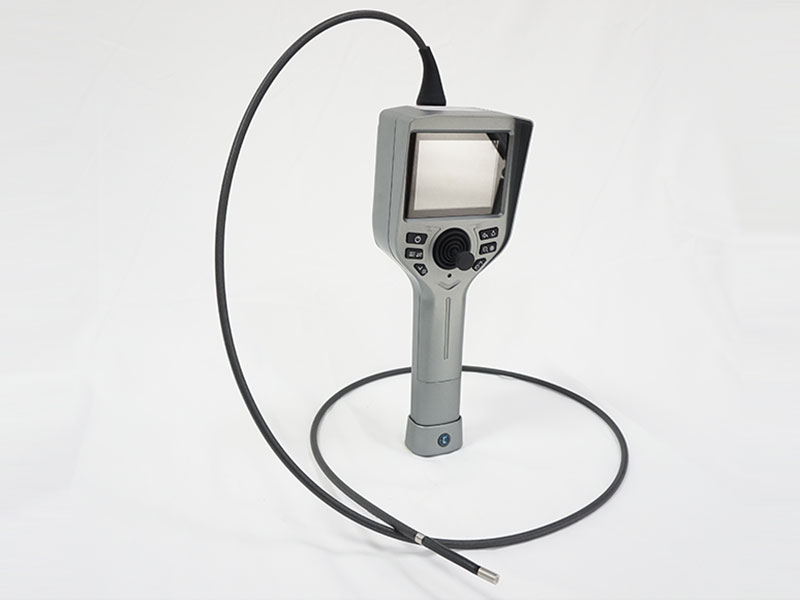

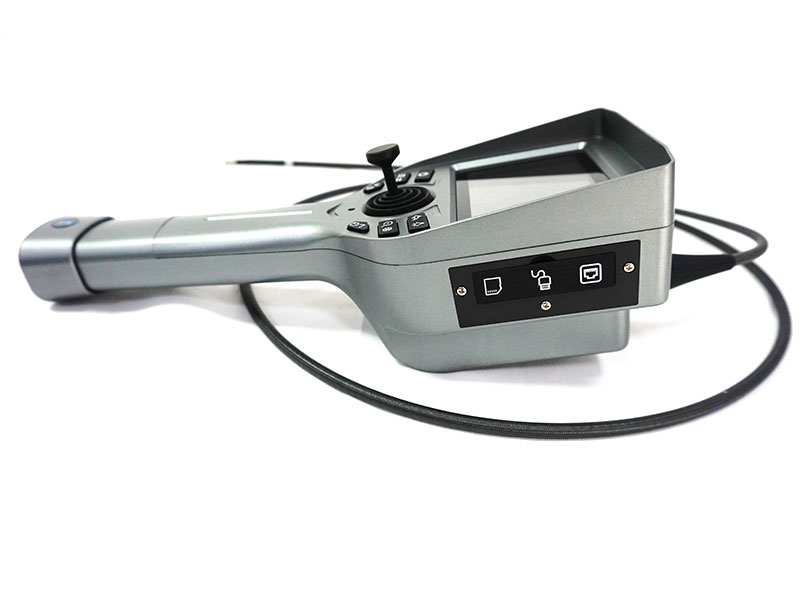

ES Series Industrial Videoscope/Endoscope
ES series industrial videoscopes /endoscopes support full HD 2-Megapixel camera with 1980*1080 HD image size, 3.5-inch TFT screen, 360° joystick articulation, 6.5-2.4mm diameter probe. It is provided with external video port that supports rigid scope/fiberscope inputs.
Specifications- Categories: Industrial Videoscope / Endoscope
- Model: ES Series
- Probe diameter: 6.5mm/6.0mm, 3.9mm, 3.1mm, 2.4mm
- Sheath: tungsten braid, durable 4-layer construction
- Camera pixel:1980*1080 (for 6.5mm/6.0mm,3.9mm)/ 1280*720 (for 3.1mm)/ 400*400 (for 2.4mm)
- DOF: 10mm-100mm, or others
- FOV: 120° or 90°
- View direction: direct view/direct view & side view dual camera (6.0mm, 3.9mm)
- Articulation: 360° joystick with mechanical control articulation
- External video input: external video port available, supporting rigid scope/fiberscope input
- Screen: 3.5-inch TFT high brightness screen
- Memory: 16G, up to 128G support
- Output interface: HDMI, TF card, USB 2.0
- Power: 18650 Li-battery*2 pcs, or 8.4V DC, 8hrs running time
- IP level: IP67 (probe/camera)
| Probe Diameter | Ø2.4mm | Ø3.1mm | Ø3.9mm | Ø6mm/Ø6.5mm | ||
| Camera Pixels | 160,000 pixels 400*400 | 720P pixels 1280*720 | 2 Mega pixels 1980*1080 | |||
| Optical | FOV | 90° | 120° | |||
| DOF | 5mm -80mm | 10mm-100mm or others | ||||
| View Direction | direct view | direct view & side view dual camera | ||||
| Articulation | 180° mechanical | 360° mechanical | ||||
| Probe | tungsten braid, durable 4-layer construction | |||||
| Length | 1-1.5 meters | 1-3 meters | ||||
| System | ||||||
| Monitor | 3.5-inch TFT high brightness screen | |||||
| Software | Zoom In & Out; Image Flip/mirror; Scale; AWB/AGC/AEC/Edge/Color Saturation. | |||||
| Output Interface & Video Input | HDMI, TF card, USB 2.0, 3.5mm headphone; External Video Input with USB Type C; | |||||
| Memory | 16G, up to 128G support | |||||
| Power | 18650 Li-battery*2 pcs, or 5V DC; 8hrs running time | |||||
| IP Level | Probe/Camera: IP67 | |||||
