Rigid Borescopes

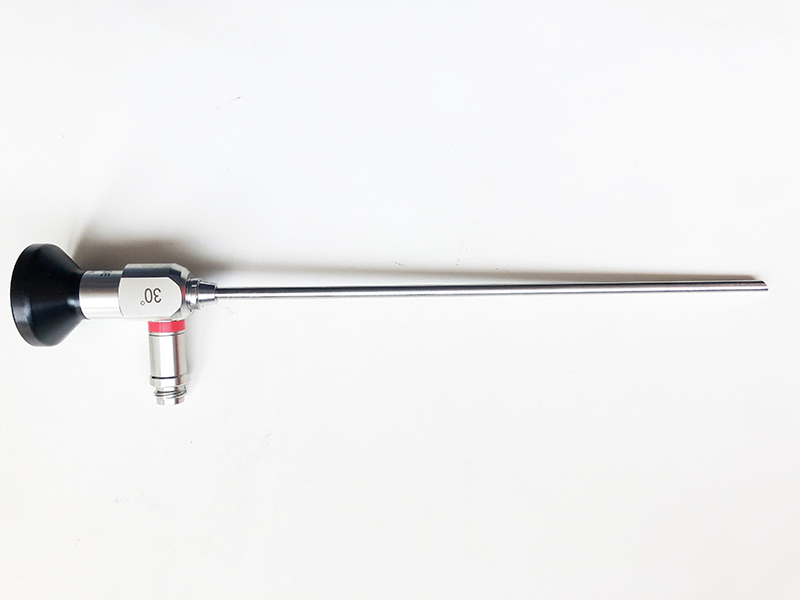

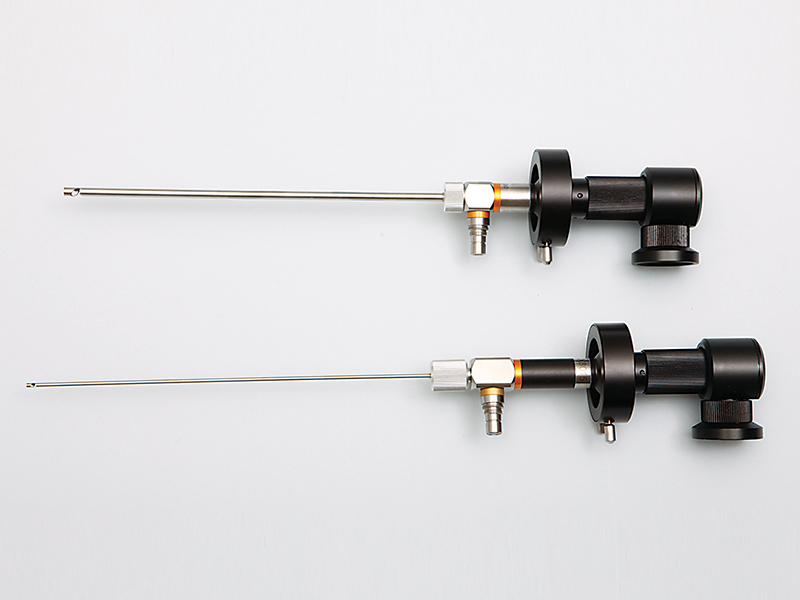

The industrial rigid borescopes are available in a wide array of diameters, working lengths, view direction, and magnification view field. The stainless-steel insertion tube is usable at temperatures between -20℃ and 150℃ (-4 to 302°F). Video recording is available by connecting a CCD camera.

  • Probe Diameter: 6.0mm/4.0mm/3.0mm/2.7mm/1.8mm
  • Angle of view: Forward/side with 90°/70°/30°/0° view
  • Material: Made from 304 stainless steel, waterproof, oil resistant, wear-resistant
  • Resolution: ≥ 20.1lP/mm (object distance 4mm);
  • Field of View ≥ 90 ° Dof: 3mm~200mm
Request a Quote
Specifications

Probe Parameters

Outer diameter Length View angle
Ø1.8mm 175mm Forward view 0° Rigid Borescopes
Ø2.7mm 175mm or others Forward view 0°
Side view: 30°, 70° Rigid Borescopes
Ø3.0mm 175mm or others
Ø4.0mm 175mm or others Forward view 0° Side view: 30°, 70°, 90° Rigid Borescopes
Ø6.0mm 175mm or others

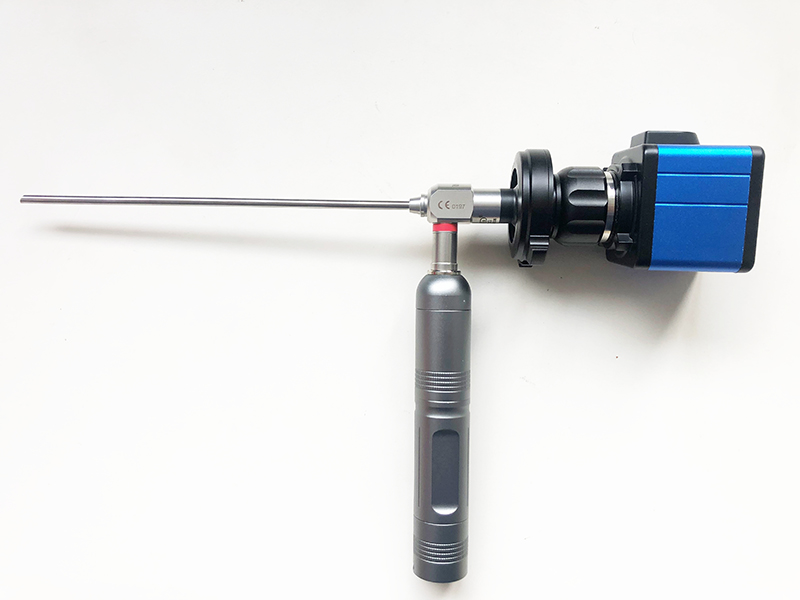

Optional Handheld flashlight Desktop light source Optical C-Mount 2 megapixel HD industrial camera 10.1 inch HD endoscope screen

Parameters

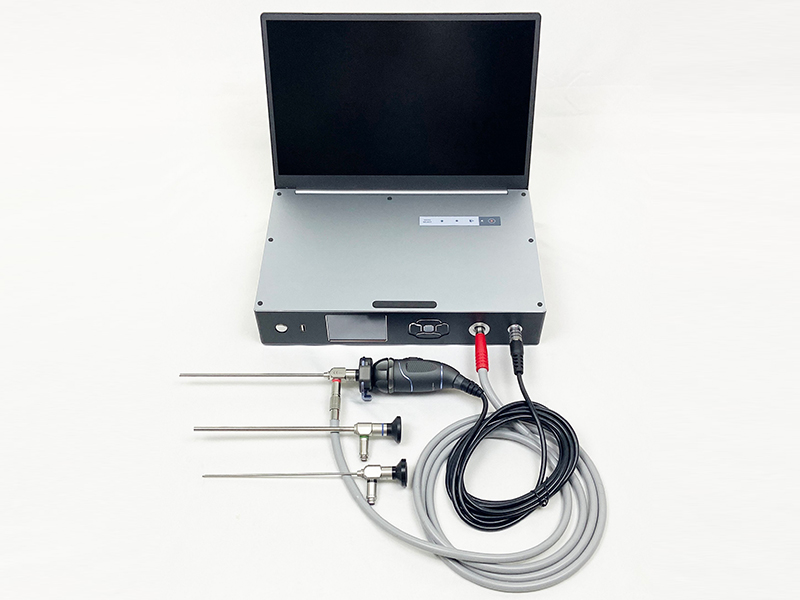

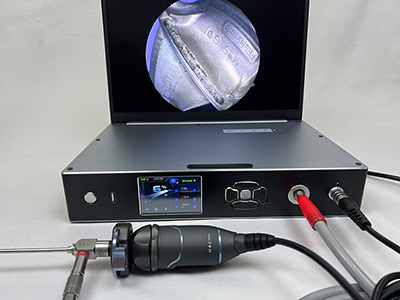

Overall Structure 15.6-inch HD large LCD screen PC host with a 3.5-inch color touch sub-screen Probe Supports rigid borescopes / fiber borescopes
CCD Camera 1080P 4K HD camera system Light Source Type >5,500,000 Lux, 100-level adjustable integrated internal light source
Screen Size 15.6-inch HD LCD main screen + 3.5-inch color touch sub-screen Power Supply AC100-240V/50-60Hz
Screen Resolution 1080P HD Storage Medium Supports U-disk, HDMI, USB, and DVI interfaces
Probe Material Supports stainless steel rigid tubes and fiber scopes Menu Language Supports Chinese, English, and multiple other languages
Video Output HDMI, USB, DVI, CVBS Host Dimensions 361 x 232 x 78 mm
Light Guide Configured with a 1.5-meter high-brightness light guide fiber Overall Weight 2.8 kg
Host Interfaces USB3.0*2, HDMI*1, DVI*1, CVBS*1, fiber interface*1, CCD camera interface*1 IP Rating Probe and scope line can withstand IP68 waterproof and dustproof
Operating System Touch screen control; Auto/Manual/Preset modes for AWB; Up to 6 sets of preset image color schemes; Supports zoom in/out, photo/video, image processing, one-key freeze, color adjustment, brightness adjustment, etc.
Configuration List
  • 15.6" HD desktop optical endoscope host screen (with built-in light source) *1 unit
  • 2-megapixel HD CCD camera handpiece *1 unit
  • High-brightness fiber optic light guide *1 unit
  • HDMI HD video cable *1 unit
  • Power adapter *1 unit
  • 64G memory card *1 unit
  • Instrument case *1 unit
