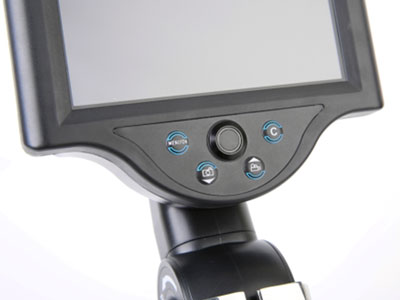

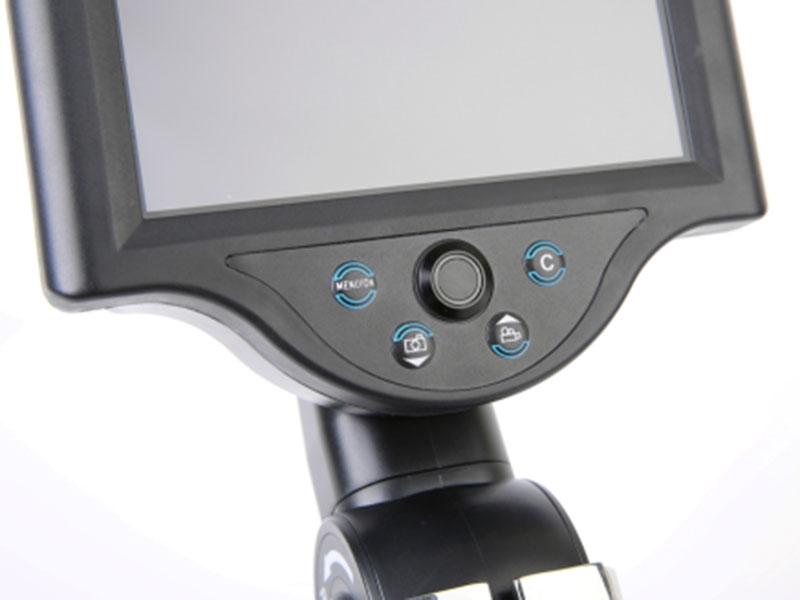

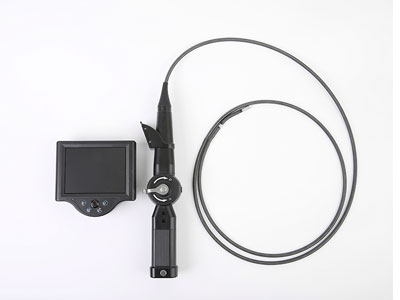

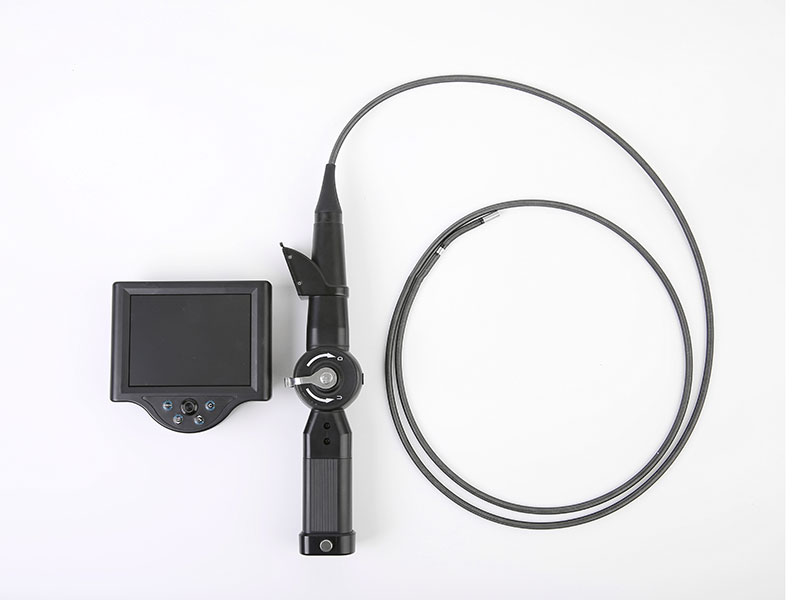

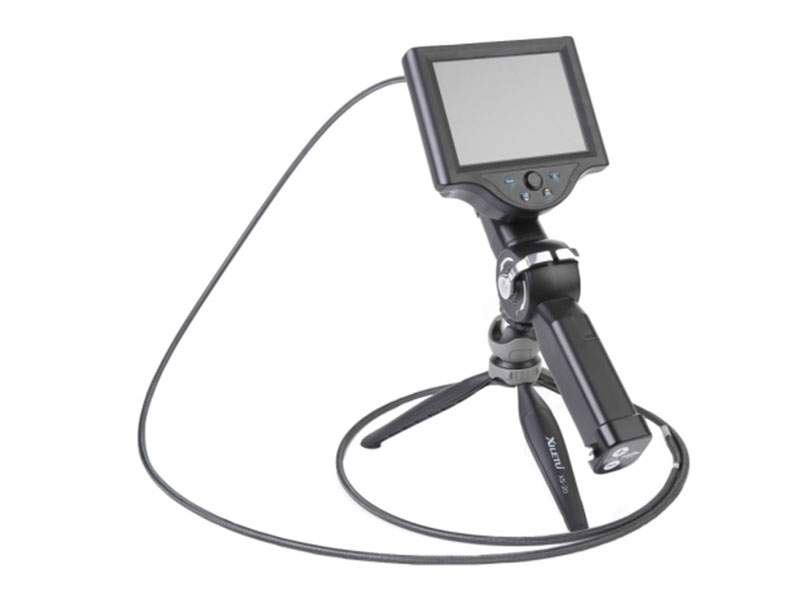

EC60i Series Industrial Videoscope/Endoscope

  • EC60i Series Industrial Videoscope/Endoscope
  • EC60i Series Industrial Videoscope/Endoscope
  • EC60i Series Industrial Videoscope/Endoscope
  • EC60i Series Industrial Videoscope/Endoscope

EC60i series industrial videoscopes /endoscopes support 5-inch 4:3 TFT screen, mega pixels, 4-way articulation, interchangeable probe design, and 6.5-2.4mm diameter probe.

Specifications
  • Categories: industrial videoscope / endoscope
  • Model: EC60i Series
  • Probe Diameter: 6.5mm/6.0mm, 3.9mm, 3.1mm, 2.4mm
  • Interchangeability: interchangeable probe design
  • Sheath: tungsten braid, durable 4-layer construction
  • Camera pixel:1980*1080 (for 6.5mm/6.0mm,3.9mm)/ 1280*720 (for 3.1mm)/ 400*400(for 2.4mm)
  • DOF: 10mm-100mm, or others
  • FOV: 120° or 90°
  • View direction: direct view/ direct view & side view dual camera (6.0mm, 3.9mm)
  • Articulation: 4-way mechanical control articulation
  • Screen: 5-inch high brightness TFT screen
  • Memory: 16G, up to 128G support

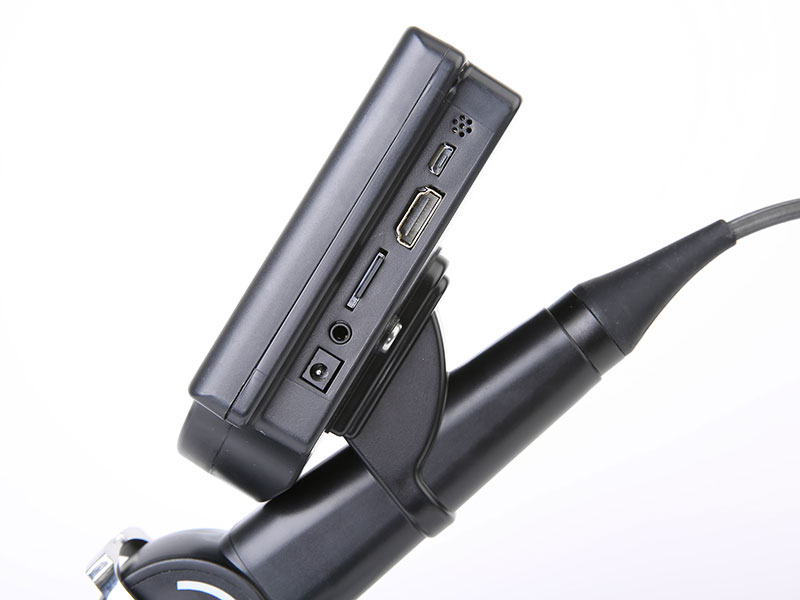

  • Output interface: HDMI, TF card, USB 2.0, 3.5mm headphone
  • Power: 18650 Li-battery*2 pcs, or 8.4V DC, 8hrs running time
  • IP level: IP67 (probe/camera)
ETA SPECIFICATION
Probe Diameter Ø2.4mm Ø3.1mm Ø3.9mm Ø6mm/Ø6.5mm
Camera Pixels 160,000 pixels 400*400 720P pixels 1280*720 2 Mega pixels 1980*1080
Optical FOV 90° 120°
DOF 5mm -80mm 10mm-100mm or others
View Direction direct view direct view & side view dual camera
Articulation 180° 2-way mechanical 360° 4-way mechanical
Probe Tungsten braid, durable 4-layer construction
Length 1-1.5 meters 1-6 meters
System
Monitor 5-inch high brightness TFT screen
Software Zoom In & Out; Image Size & Color Editing; Image/Video time Mark; AWB/AGC/AEC/Color Saturation.
Output Interface HDMI, TF card, USB 2.0, 3.5mm headphone
Memory 16G, up to 128G support
Power 18650 Li-battery*2 pcs, or 8.4V DC; 8hrs running time
IP Level Probe/Camera: IP67
