TPC80 Series 4K HD Telescopic Pole Camera
  • TPC80 Series 4K HD Telescopic Pole Camera
  • TPC80 Series 4K HD Telescopic Pole Camera
  • TPC80 Series 4K HD Telescopic Pole Camera
  • TPC80 Series 4K HD Telescopic Pole Camera
  • TPC80 Series 4K HD Telescopic Pole Camera

TPC80 Series 4K HD Telescopic Pole Camera

Telescopic inspection cameras are becoming more and more popular in many industries for tasks such as roof and building inspections, aerial photography, inventory checks, gutter cleaning, wildlife surveying or loss adjustment.

TPC50/TPC80 series telescopic pole camera systems work by relaying a 4K full HD live image from the camera on top of the pole to a receiver monitor down below. This live image allows the user to inspect the area of interest and to decipher whether or not any further action is necessary.

The pole inspection camera supports WiFi realtime video transfer to Android phone or tablets o share photos or videos with colleagues or clients.

Request a Quote
4K Telescopic Pole Inspection Camera
  • 4K Ultra HD Camera, Resolutions including 4K;1440P;1080P
  • Dual Electrical Articulation control: 300° horizontal and 360° vertical rotation
  • Supports IR & white dual light source,IR night Vision distance >50Meters
  • 7-inch 1080P HD Touchscreen,
  • WiFi wireless real time video transfer up to distance over 50 meters
  • Carbon Fiber Pole: Lightweight and extendable to 3m, 5m, 7m, 12m
TPC80 Series 4K HD Telescopic Pole Camera

Applications for the 4K dual light source telescopic inspection camera abound in law enforcement, industrial inspections, and other areas including:

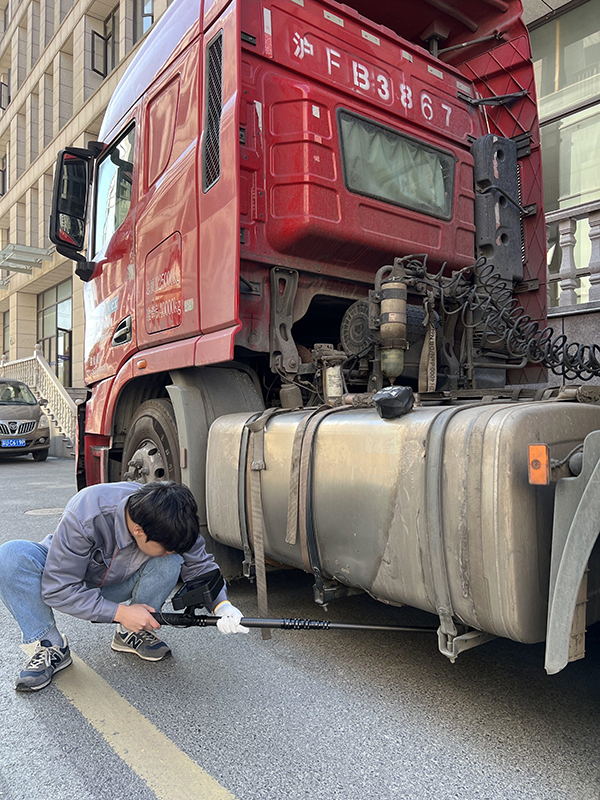

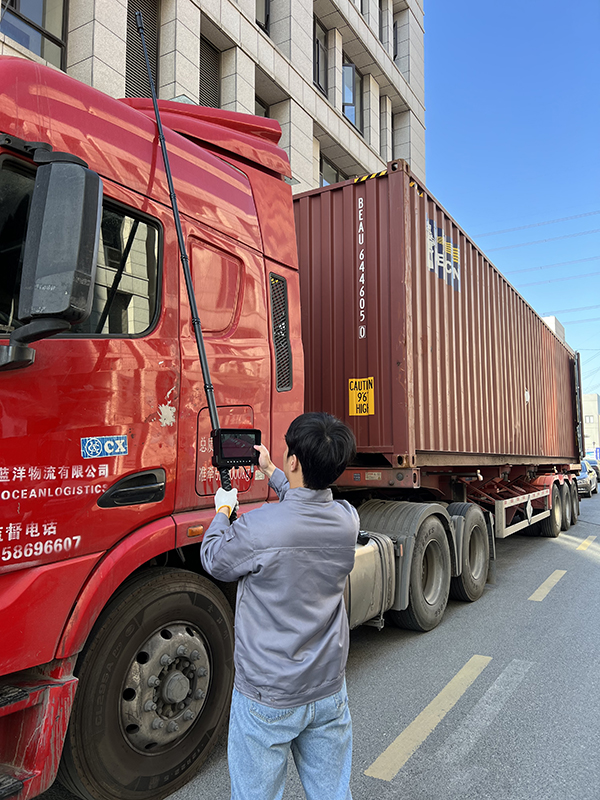

  • Security inspections under vehicles, in shafts, underground areas, rooftops, ceiling lights, chandeliers, etc.
  • Bomb detection under vehicles at major events, police stations, luxury hotels, big manufacturers, stadiums, cinemas, theaters, conference locations.
  • Industrial inspections of pipelines, gas cylinders, boilers, heat exchangers, long trailers, tankers, and large containers.

Additionally, it is suitable for:

  • Roof and Gutter Inspection
  • High-Rise Cleaning Inspection
  • Telescopic Measurement
  • Property Photography
  • Warehouse Inventory Inspection
  • Real Estate Photography
  • Internal Chimney Inspections
  • Wildlife Surveys
  • Asset and Infrastructure Inspections
  • Building Surveys
  • Loft and Attic Inspections
  • Septic Tank Inspections
  • Bat Surveys
  • Aerial Photography
Specifications
Screen 7 inch 1080P HD touch screen
Pixel 4K full HD, supports 4K/1440P/1080P output
Wireless transfer Support WiFi real-time video transfer, distance up to 50m
Articulation Dual-motor rotation control, horizontal 300°/vertical 360° electrial articulation
Light source Supports dual light source (white/IR), with 50m night vision
Battery Supports 18650 lithium-ion battery, and DC input
IR rating IP68 waterproof
Model Options
Model Working length
TPC80-3m Max. working length: 3.24m
Min. working length: 0.93m
TPC80-5m Max. working length: 5m
Min. working length: 1.2m
TPC80-7m Max. working length: 7m
Min. working length: 1.2m
TPC80-12m Max. working length: 12m
Min. working length: 2m
Camera is interchangeable
Technical Features
    4K Telescopic Pole Inspection Camera

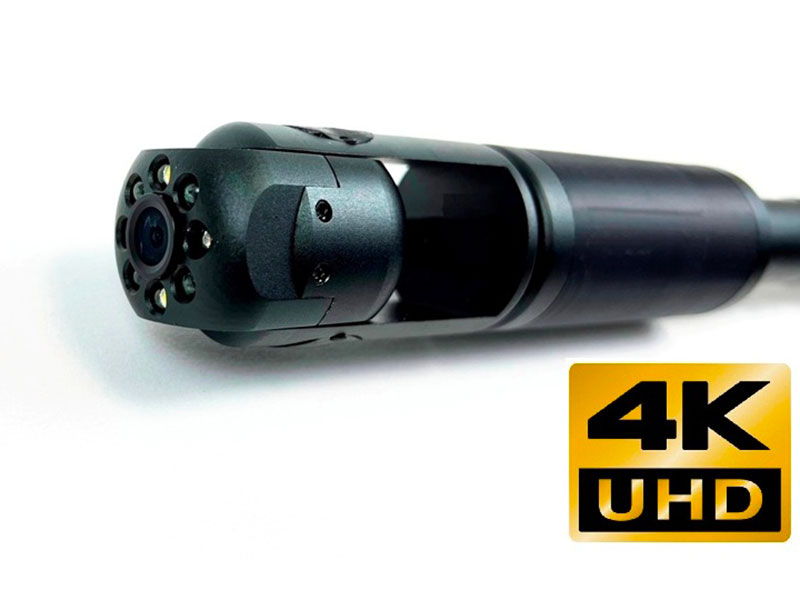

    • 4K Full HD camera with high dynamic range supports image capture: 3840 (H)*2160 (V) size, and video/audio capture of 1440P or 1080P;
    • Built-in double sources including IR light and white light.
    • Available with different modes for day and night vision.
    4K Telescopic Pole Inspection Camera

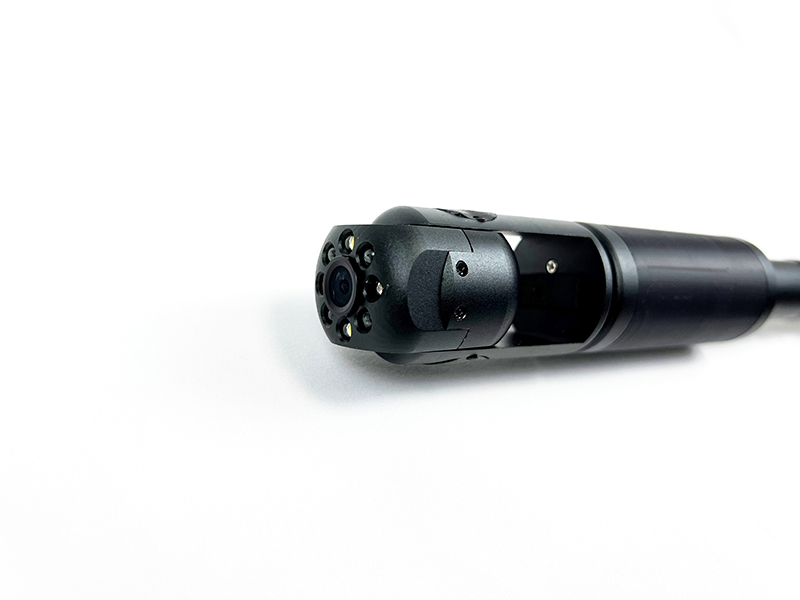

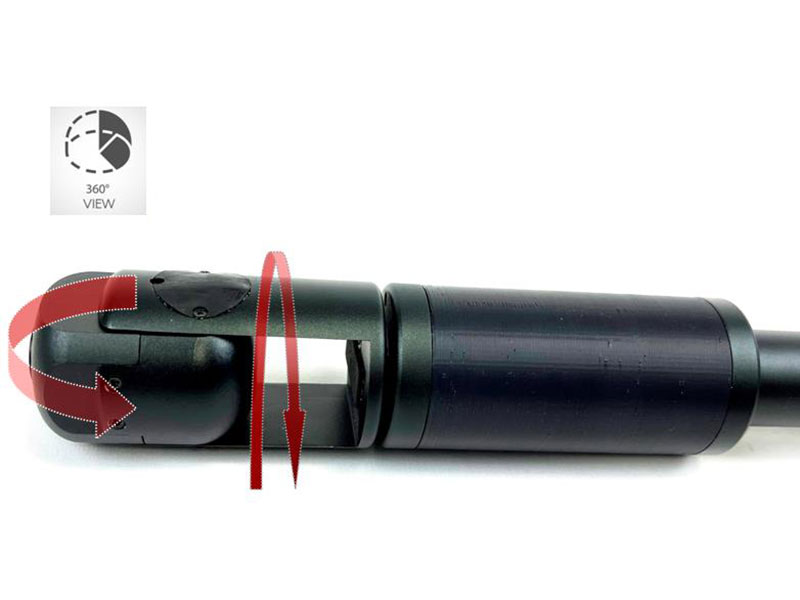

    TPC80 pole inspection camera is equipped with two motors that allow the probe to be rotated 300°horizontally and 360°vertically, realizing a 360-degree view.

    4K Telescopic Pole Inspection Camera

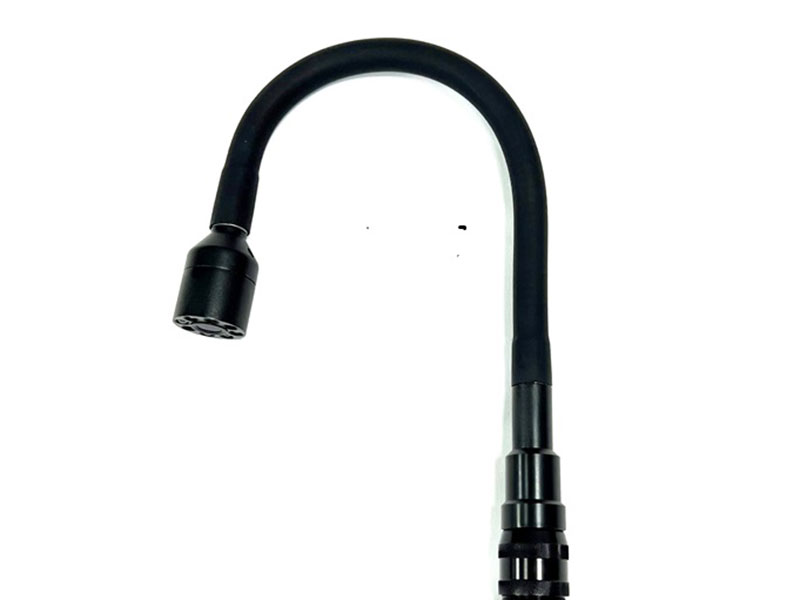

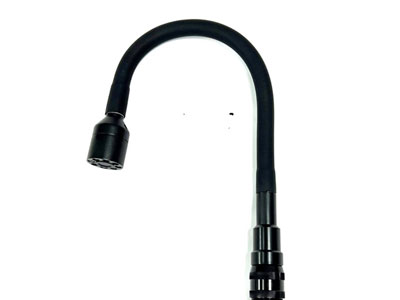

    TPC50 telescopic pole camera is equipped with a manual flexible probe that can be bent or angled 360°for objects in hard-to-access places.

    4K Telescopic Pole Inspection Camera

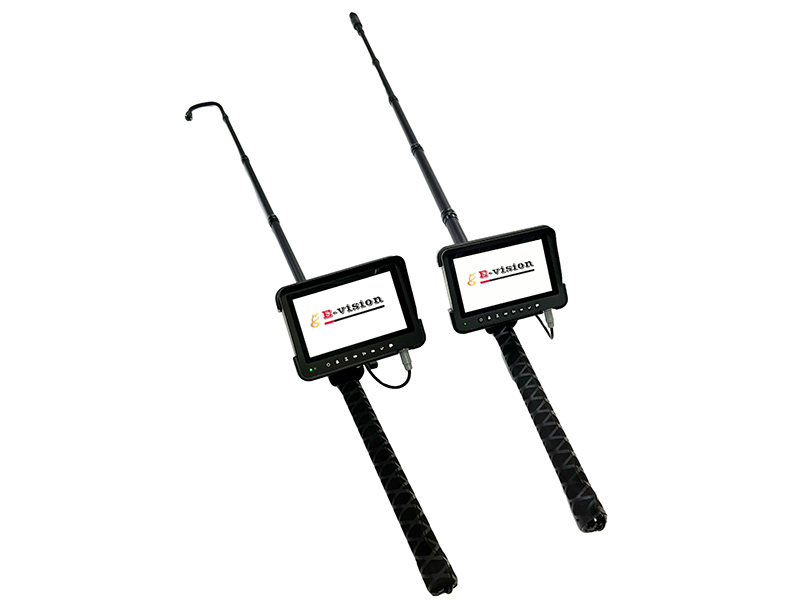

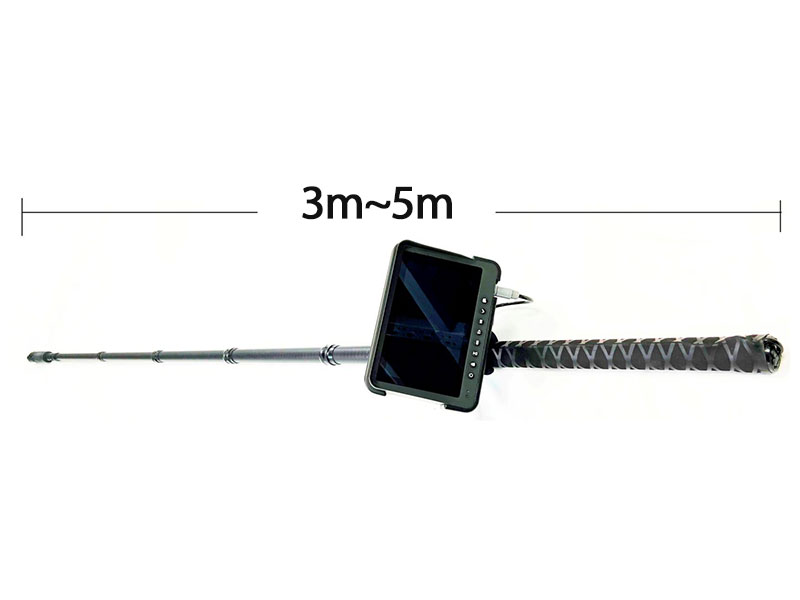

    Made of carbon fiber, the pole is more flexible for inspection with a minimum retraction length of 0.96m and a maximum extension length ≥ 3m (available within 5m).

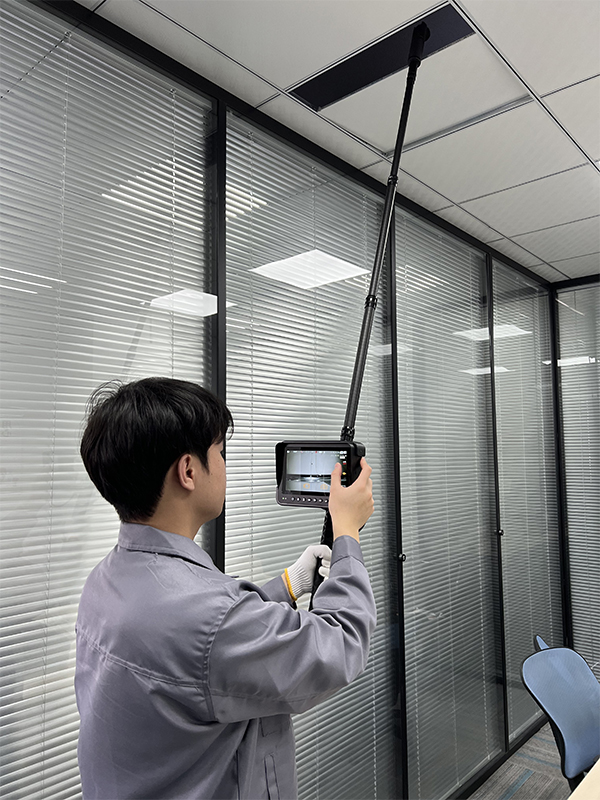

    The whole pole inspection camera is less than 2kg in weight. This pole camera can be applied in detecting explosives, weapons, suspicious items, and prohibited items hidden under the car, above the ceiling, on the shed, and at high altitudes. It can also be used as a reconnaissance camera.

    4K Telescopic Pole Inspection Camera

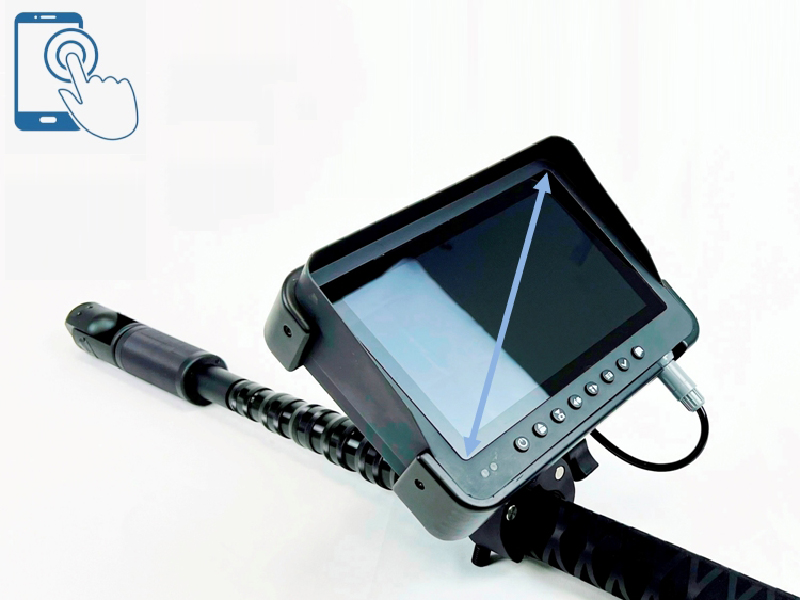

    • The 7'' inch 1080P touch screen displays high-definition images.
    • With 128G SD storage, the camera can safely save pictures and videos.
    • The display can be operated both by touch and by physical buttons.
    • The shade on the display prevents direct sunlight and makes it safer for outdoor operation.
    • IP67 rating
    4K Telescopic Pole Inspection Camera

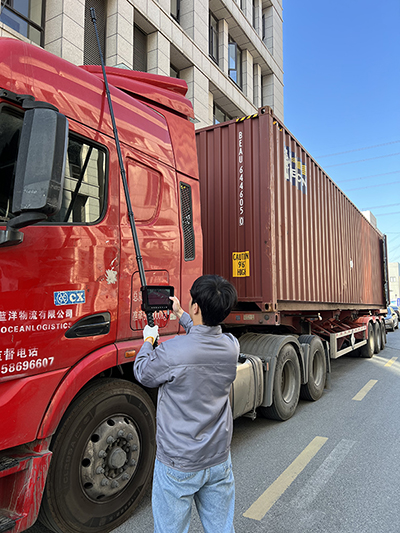

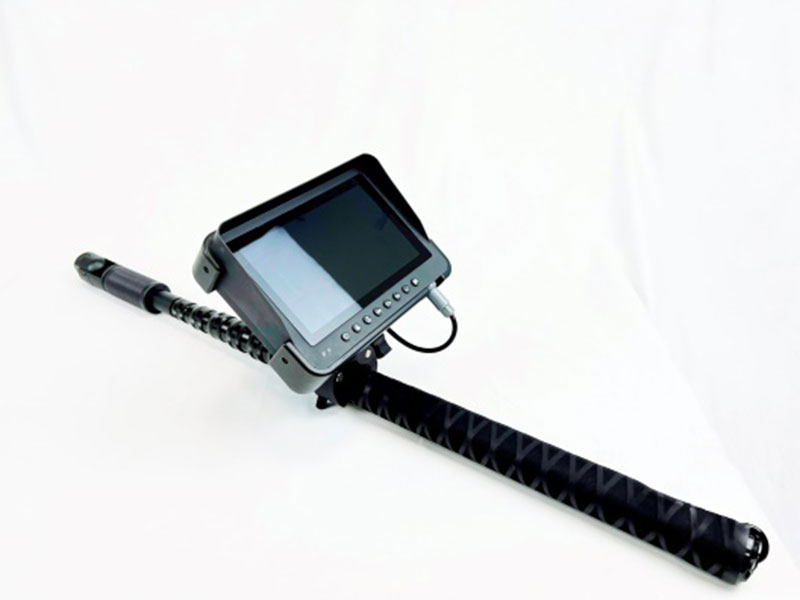

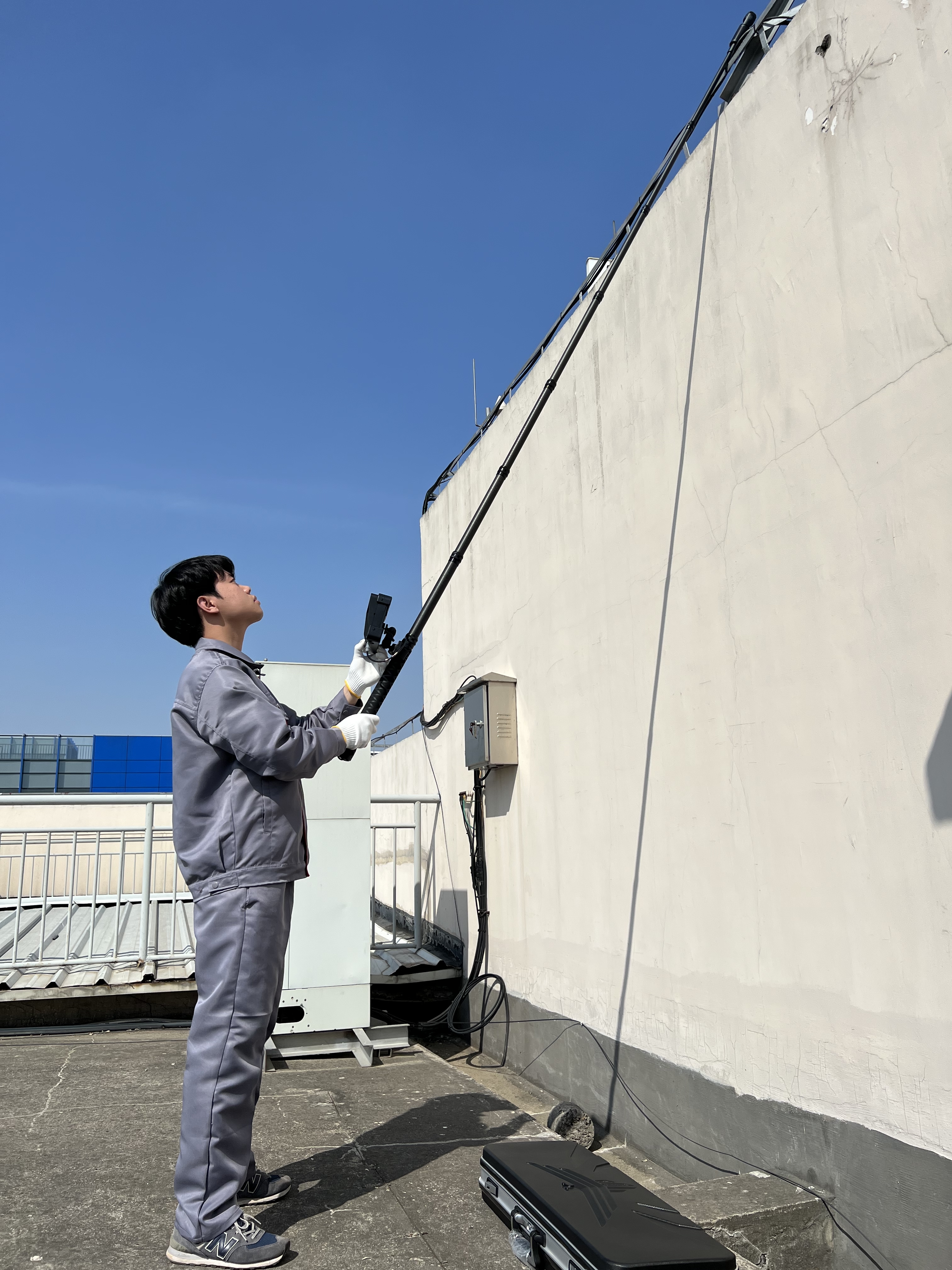

    With a lightweight and portable design, the telescopic pole camera can be used for inspection at different angles in different environments.

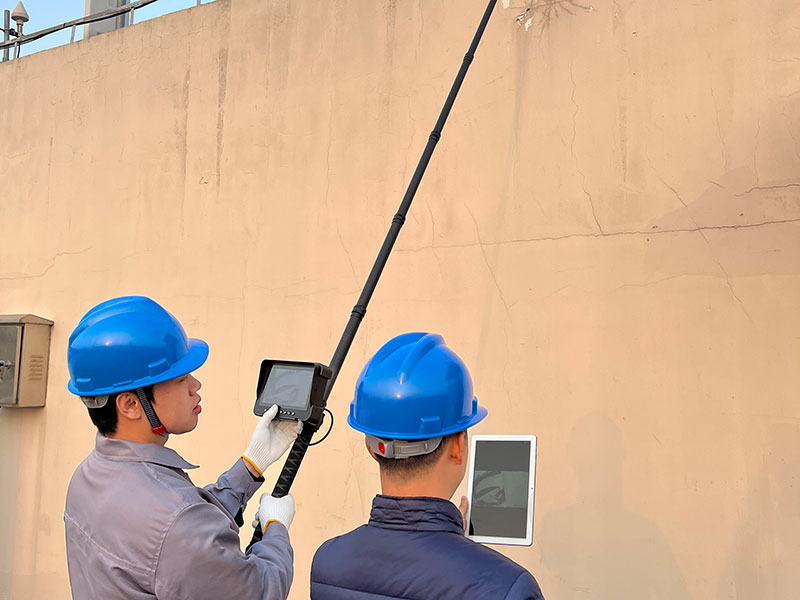

    The camera can be equipped with WIFI to transfer images and videos to Android devices with a maximum transmission distance of 50m.
