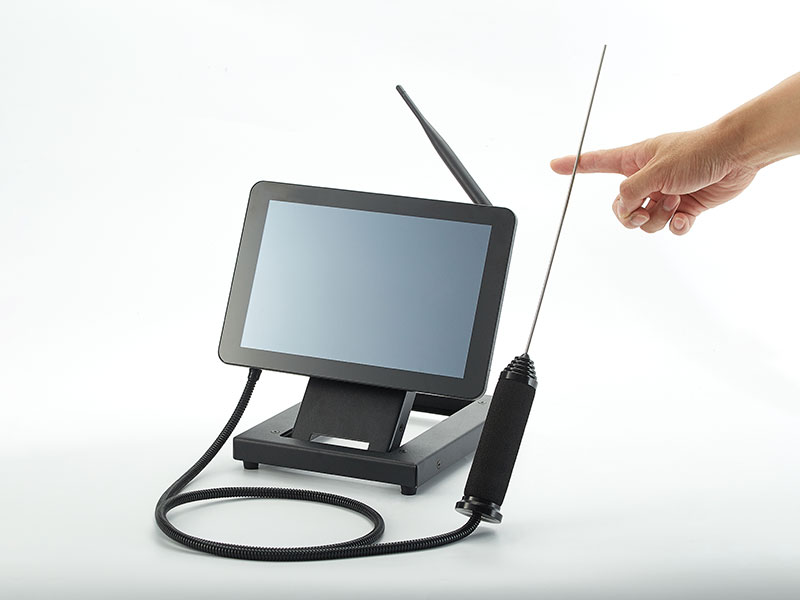

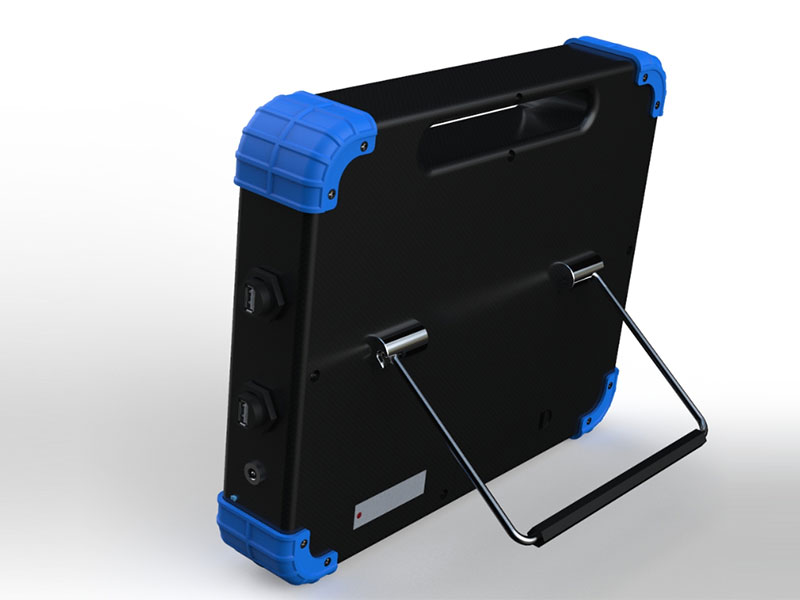

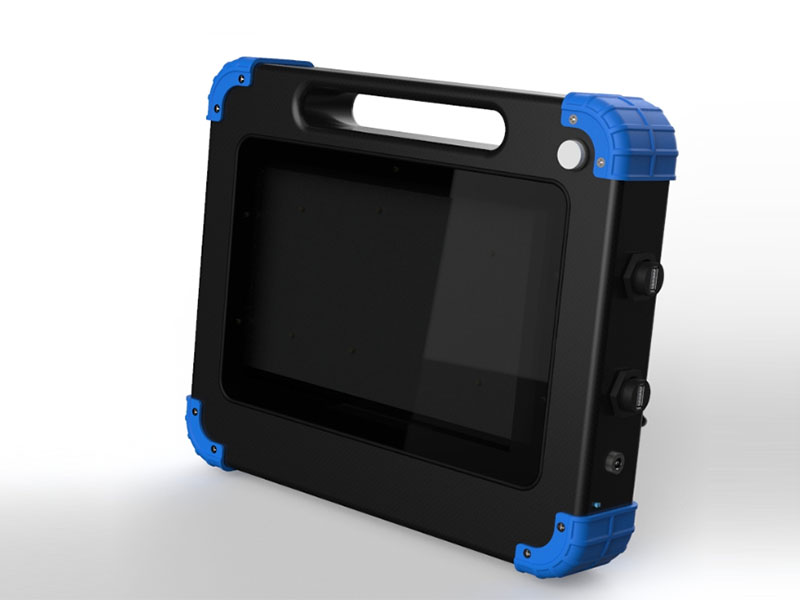

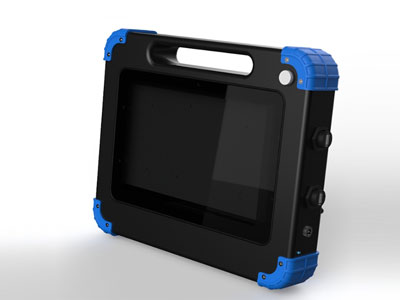

ECP10 Monitor Industrial Videoscope

  • ECP10 Monitor Industrial Videoscope
  • ECP10 Monitor Industrial Videoscope
  • ECP10 Monitor Industrial Videoscope

ECP10 Monitor series videoscope is designed with 10.1-inch TFT HD screen, it can work with ECP series flexible probe, rigid scope and fiberscope, and support HDMI, TF card, USB 2.0, and li-battery or 5V DC power.

Specifications
  • Categories: Industrial Videoscope / Endoscope; Rigid or Fiberscope Use
  • Model: ECP10 Monitor
  • ECP10 Monitor: 10.1-inch TFT HD screen, can work with ECP series flexible probe /rigid scope/fiberscope; it supports li-battery & 5V DC power, HDMI, TF card, USB 2.0
  • Probe model: ECP Probe Series
  • Diameter: support 6.5mm/6.0mm, 3.9mm, 3.1mm, 2.4mm with mega HD pixels
  • Articulation: 4-way mechanical control articulation
  • Video output: standard USB video output, PC USB port, phone USB port
  • IP level: IP67 (probe/camera)
ETA SPECIFICATION
Monitor 10.1-inch TFT HD screen
Software Zoom In & Out; Image Size & Color Editing; Image/Video time Mark; AWB/AGC/AEC/Color Saturation.
Output Interface HDMI, TF card, USB 2.0
Memory 16G, up to 128G support
Power 18650 Li-battery*2 pcs, or 8.4V DC; 8hrs running time
Video Input Support ECP Series Flexible Probe /Rigid scope/Fiberscope
Tags

side-view endoscope, inspection cameras, bending borescope, industrial endoscope camera
