  • ES-IR Series

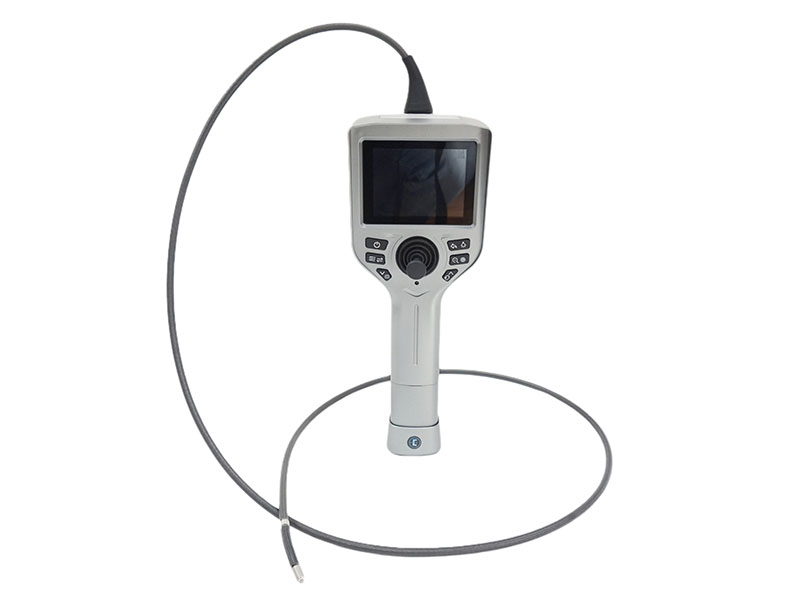

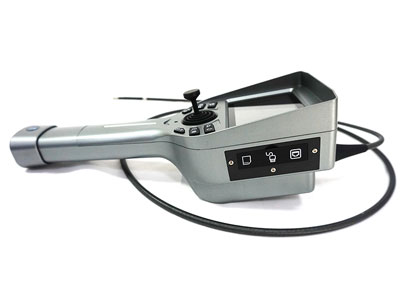

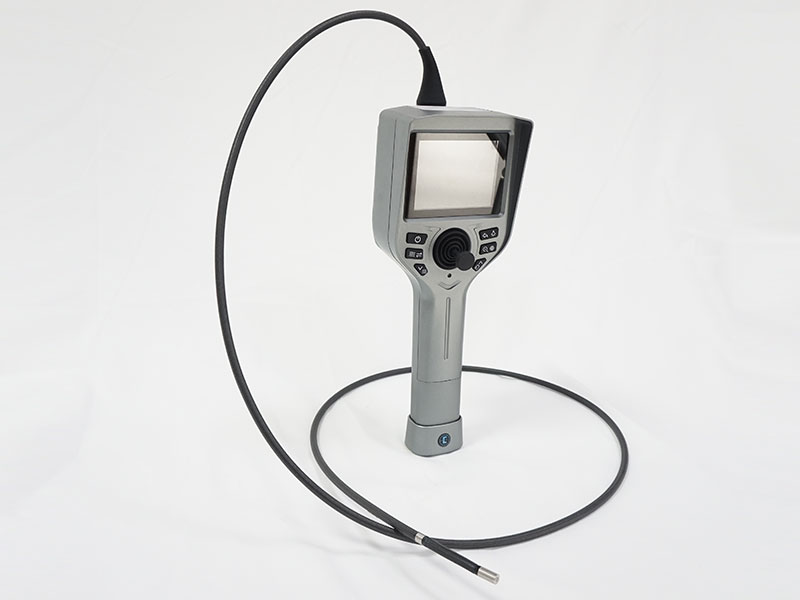

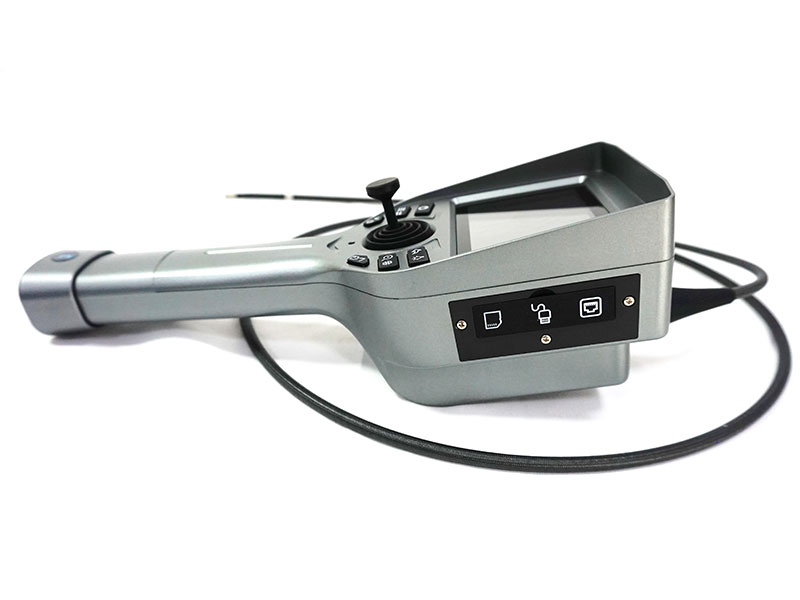

ES-IR Series

This product has been discontinued and removed from our shelves.

  • ES-IR Series
  • ES-IR Series
  • ES-IR Series
Specifications
  • Categories: Police Security Endoscope
  • Model: ES-IR Series
  • Probe Diameter: 6.0mm (940nm IR and light dual lights), 3.9mm (940nm IR lights)
  • Sheath: tungsten braid, durable 4-layer construction
  • Camera pixel: 1280*720 (6.0mm)/ 400*400 (3.9mm)
  • Dof: 20mm-∞ (clear night vision for objects 10 meters away)
  • FOV: 85°
  • View direction: direct view
  • Articulation: 360° joystick with mechanical control articulation.
  • External video Input: support rigid scope/fiberscope input
  • Screen: 3.5-inch TFT high brightness screen
  • Memory: 16G, up to 128G support
  • Output interface: HDMI, TF card, USB 2.0
  • Power: 18650 Li-battery*2 pcs, or 8.4V DC, 8hrs running time
  • IP Level: IP67 (probe/camera)
