Dual Camera Input HD Desktop Industrial Videoscope

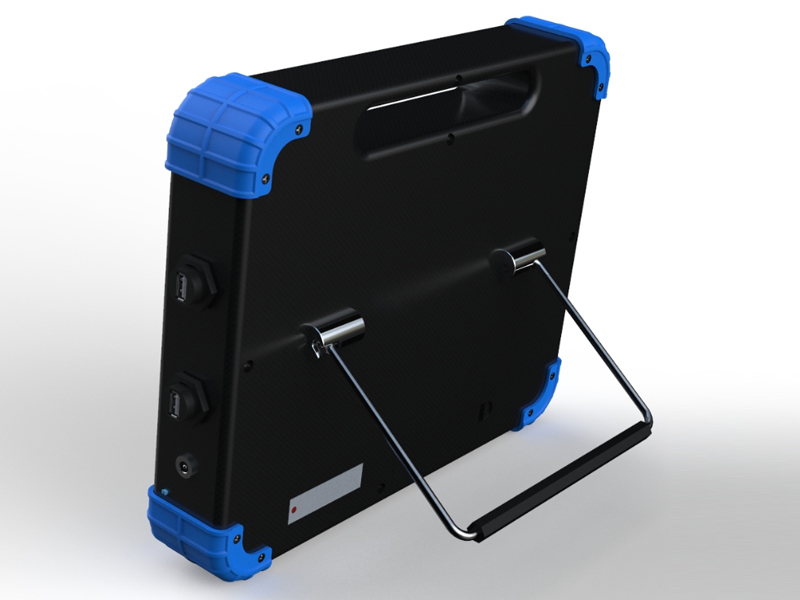

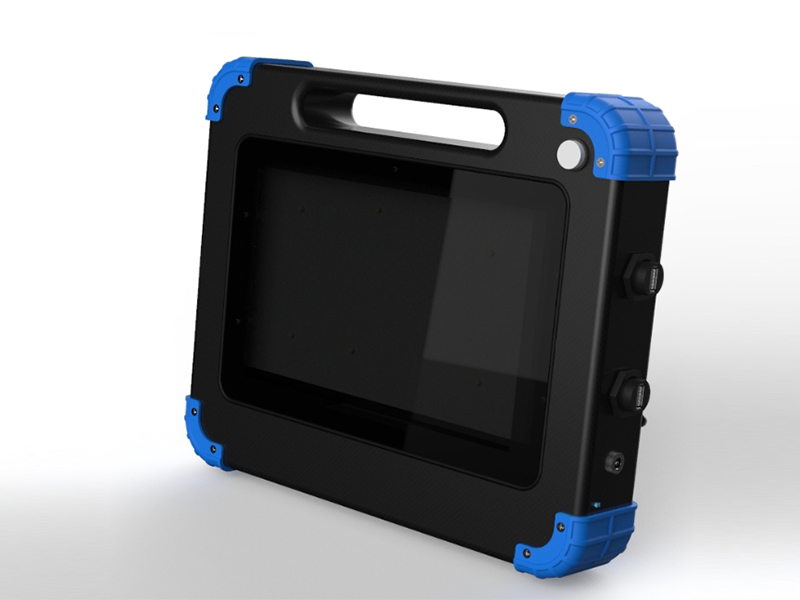

ECP101 Series HD Desktop Industrial Videoscope

Driver-free Compatibility: Supports a variety of borescopes and industrial cameras with different diameters.
Display: 10.1-inch LCD touchscreen;
Processor: 2.8GHz dual-core CPU / GPU
Resolution: Full 1080P HD
Flexible Probe: Supports probes with diameters of 6.0mm, 3.9mm, 2.8mm, 2.4mm, 2.0mm, 1.5mm, and 1.0mm.
Supports rigid borescopes and fiberscopes with diameters of 6.0mm, 4.0mm, 3.0mm, 2.7mm, 1.8mm, 0.75mm, and 0.5mm
Articulation: Four-way 360° mechanical articulation
Supports dual probe input, picture-in-picture mode, and split-screen display, along with the capability to print reports directly.
Application: In industrial machinery; automotive; rail; marine sector; aerospace; electrical, nuclear power; construction; public security; military, law enforcement; and firefighting industries, etc

Request a Quote

Features

10.1-inch 1080P HD touchscreen with a 2.8GHz dual-core CPU/ GPU processor

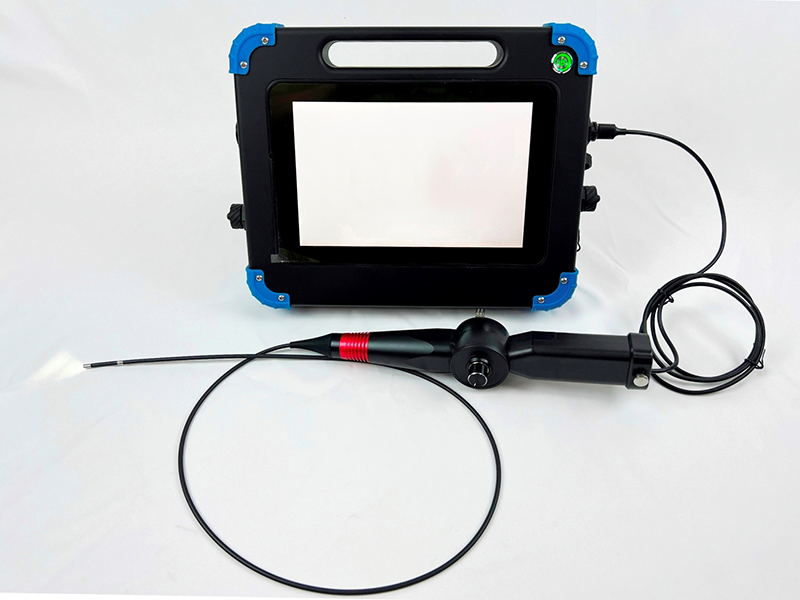

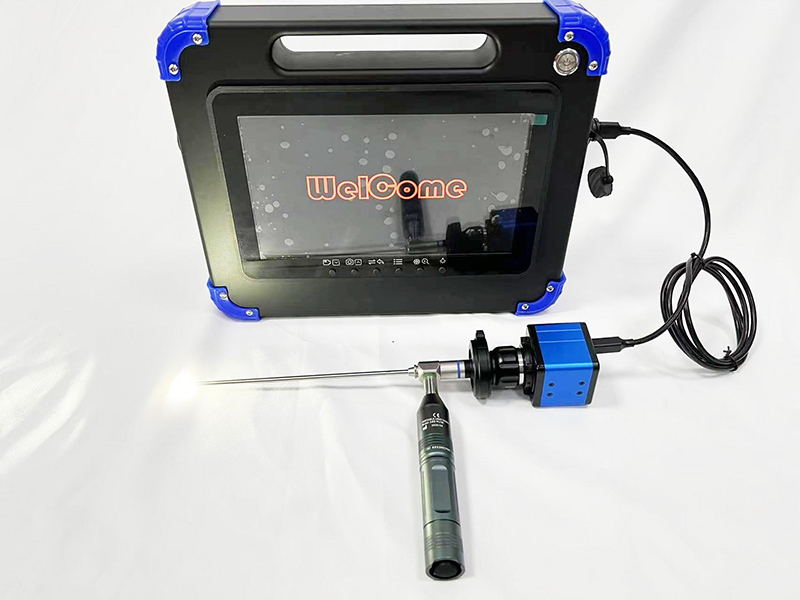

Dual camera input videoscope control unit, compatible with varies range of inspection devices such as flexible videoscope, industrial camera, rigid borescope, fiberscope. Supports dual-image display

Supports both Li-ion battery and DC power supply, along with image white balance, color, exposure and sharpness adjustments. It also lets 3D stereoscopic measuring, report printing, and image resizing (zoom in/out).

Videoscope

Structure	10.1 inch HD touch screen with dual core 2.8GHz CPU/GPU	Articulation	4-way 360° mechanical articulation
Probe	Support hose probe/rigid borescope /fiberscope with different diameters	Light source	White/IR/UV (optional)
Screen size	10.1 inch HD touch screen	Battery	Two rechargeable 18650 lithium-ion batteries, support AC adapter
Screen resolution	1080P HD	Storage medium	Support external U disk, with 1GB internal memory
Probe material	Tungsten braided probe, with waterproof coating	Language	Support 19 languages
Video output	HDMI/WiFi/Bluetooth	Videoscope size	370×265×70mm
Audio output	3.5mm headset, video & audio recording	Total weight	2.1kg (battery included)
Interface	USB3.02, USB2.01, HDMI, 3.5mm headset interface, WiFi & Bluetooth (wireless)	IP rating	IP67 waterproof
Operation system	Real-time multitasking operation system (dual video input), supporting: Image aditing, Auto white balance (AWB), Color adjustment, Brightness adjustment, Scale, Picture-in-Picture (PiP) & split screen view (left and right), Zoom in & out, One click report print, etc.

Probe & Endoscope

Diameter of rigid endoscope /fiber endoscope	8.0mm/6.0mm	4.0mm/3.0mm/2.7mm	1.8mm	0.75mm	0.5mm
View angle	0°forward view /30°side view /70°side view /90°side view		Forward view/side view	Forward view

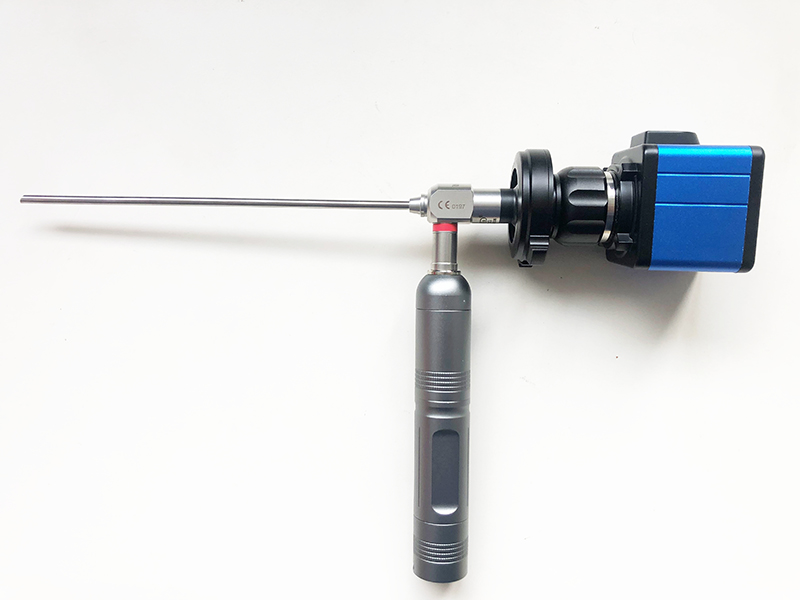

Configured with C-Mount & Industrial Camera	1080P 2 megapixel

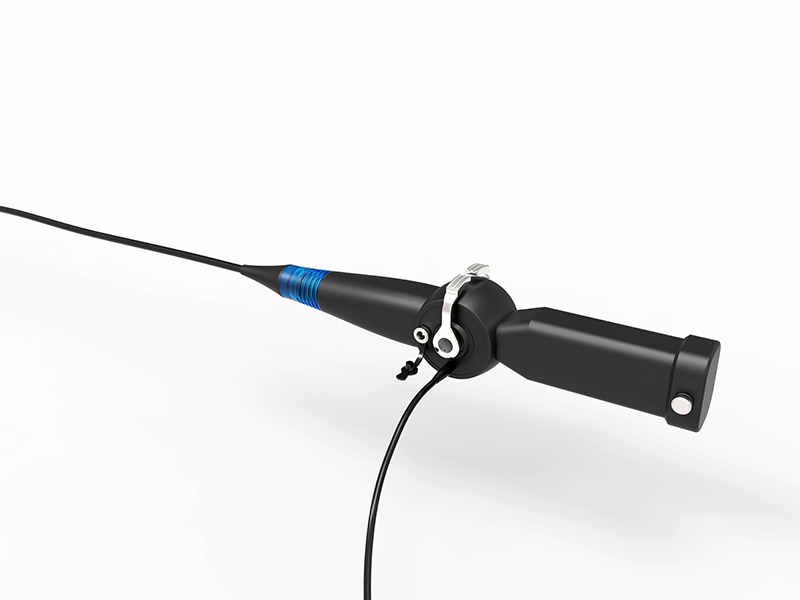

Diameter of hose probe	1.2mm/1.5mm	2.0mm/2.4mm	2.8mm	3.9mm	6.0mm
View angle	Forward view	Forward view	Forward view	Forward view /side view/dual view	Forward view /side view/dual view
Pixel	160000 pixel	160000 pixel/1 megapixel	160000 pixel/1 megapixel	2 megapixel	2 megapixel
Field of view (FOV)	120°	120°	120°	120°	90°/120°
Depth of field (DOF)	5-100mm	5-100mm	5-100mm	7-50mm/10-100mm/20mm-∞	7-50mm/10-100mm/20mm-∞
Effective working length	600mm-1m	1m	1-1.5m	1-3m	1-10m
Articulation	No	180°	360°	360°	360°
Light source	Optical fiber	Optical fiber	Optical fiber	LED/optical fiber (optional)	LED/optical fiber (optional)
