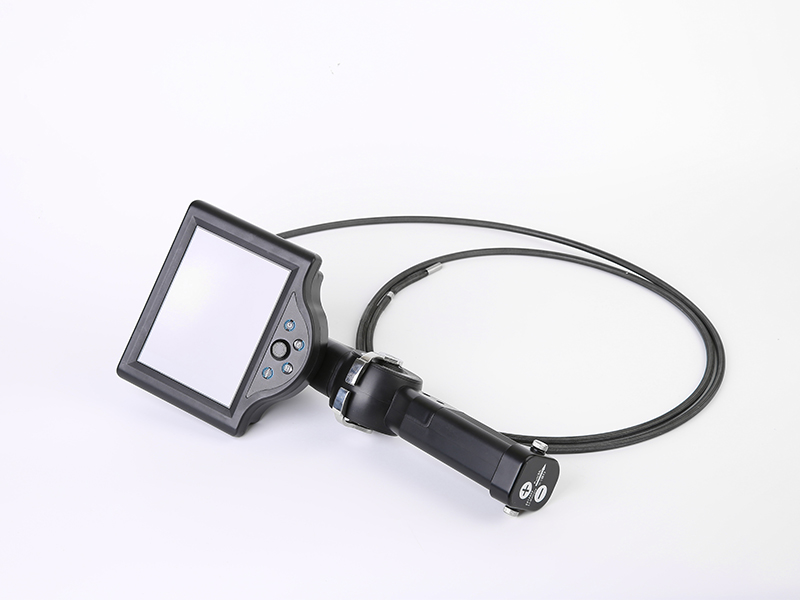

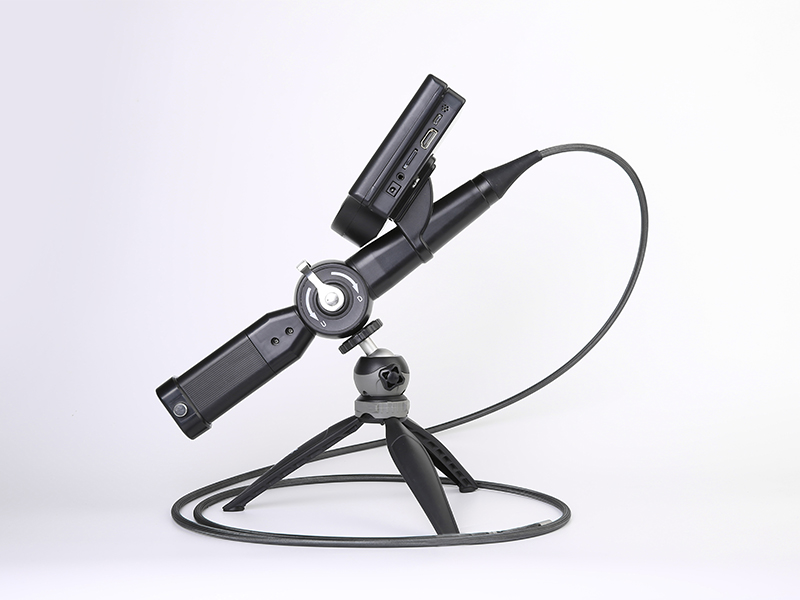

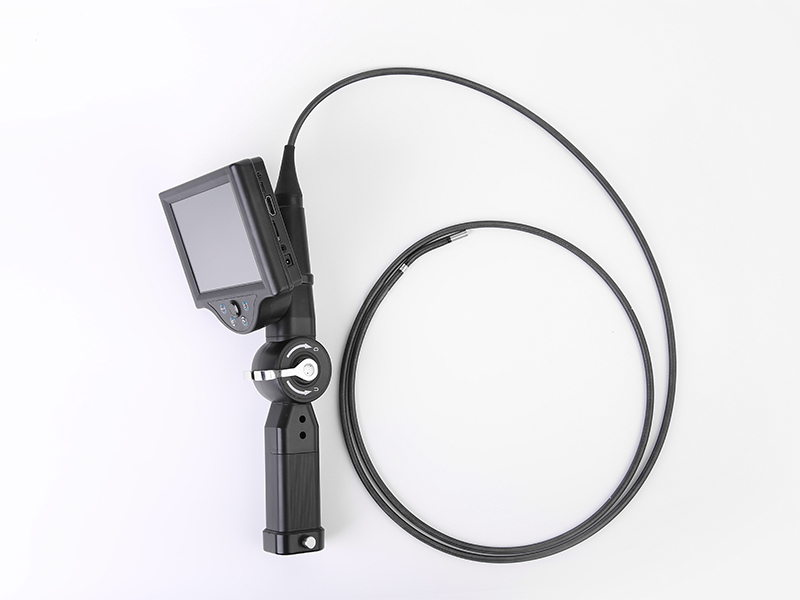

ECT40 Series HD Industrial Videoscope
ECT40 Series HD Industrial Videoscope
ECT40 Series HD Industrial Videoscope
ECT40 Series HD Industrial Videoscope
ECT40 Series HD Industrial Videoscope
ECT40 Series HD Industrial Videoscope
ECT40 Series HD Industrial Videoscope
ECT40 Series HD Industrial Videoscope
ECT40 Series HD Industrial Videoscope
ECT40 Series HD Industrial Videoscope
ECT40 Series HD Industrial Videoscope
ECT40 Series HD Industrial Videoscope
ECT40 Series HD Industrial Videoscope
ECT40 Series HD Industrial Videoscope

ECT40 Series HD Industrial Videoscope

  • Portable Design: Integrated handheld design
  • Display: 5-inch HD LCD touchscreen
  • Probe Diameter: Supports 6.0mm/3.9mm/2.8mm/2.4mm/2.0mm/1.5mm/1.0mm
  • Resolution: Up to 1080P HD 2 MP
  • Replaceable probe, supports different diameter
  • View Direction: Forward/side/dual view
  • Articulation: 4-way mechanical 360°
  • Light Source: White/IR/UV light or double light
  • Wireless : WiFi transmission of data
  • Application : In industrial machinery; automotive; rail; marine sector; aerospace; electrical, nuclear power; construction; public security; military, law enforcement; and firefighting industries, etc
Request a Quote
Features

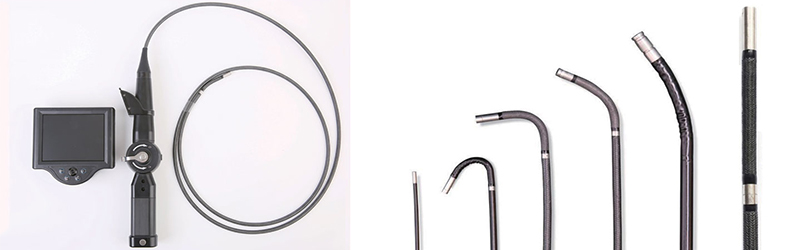

    Supports variety of probe diameters including 6.0mm;3.9mm;2.8mm;2.4mm;1.0mm and more. Offers multi-directional viewing angle and versatile light sources
    ECT40 Series HD Industrial Videoscope

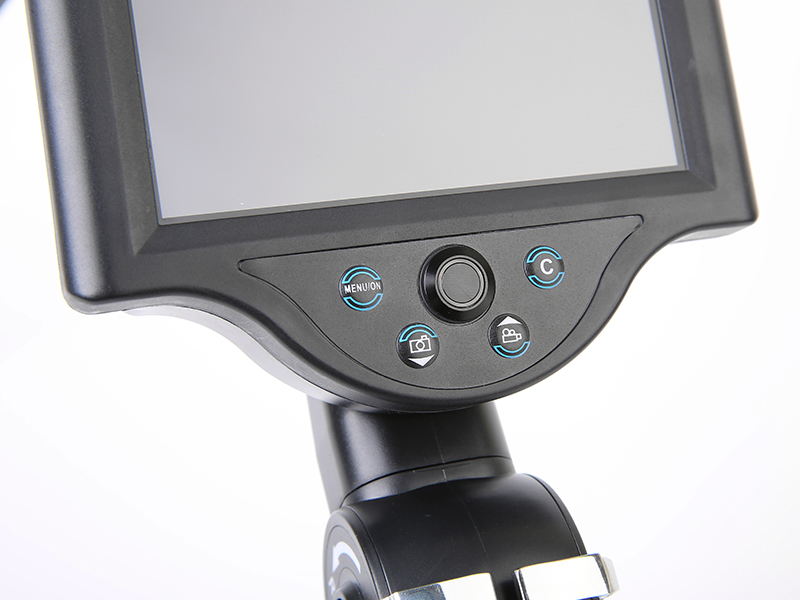

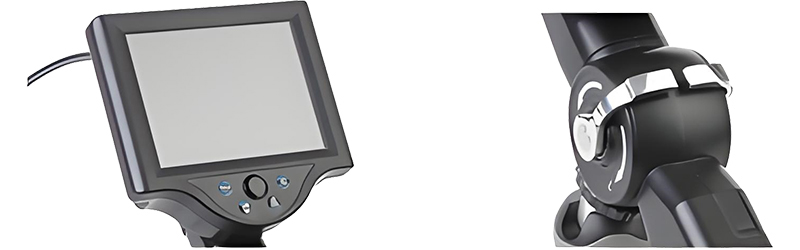

    5-inch HD touchscreen; 4-way 360° mechanical articulation
    ECT40 Series HD Industrial Videoscope

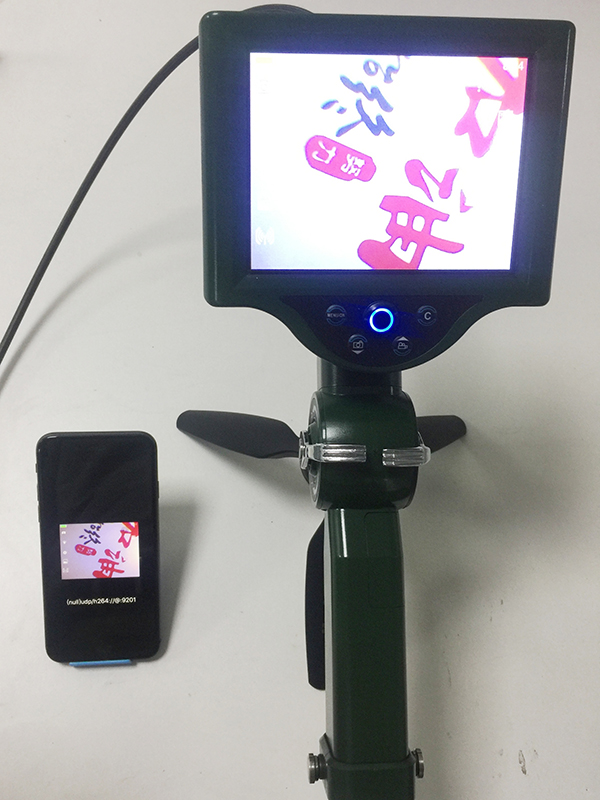

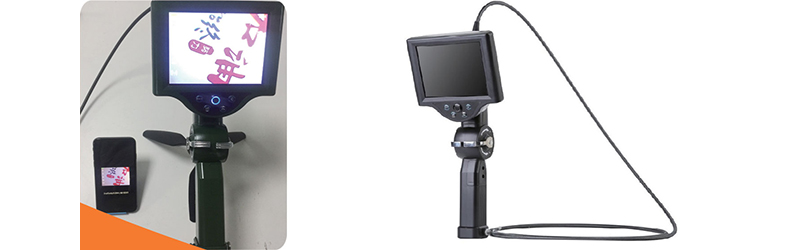

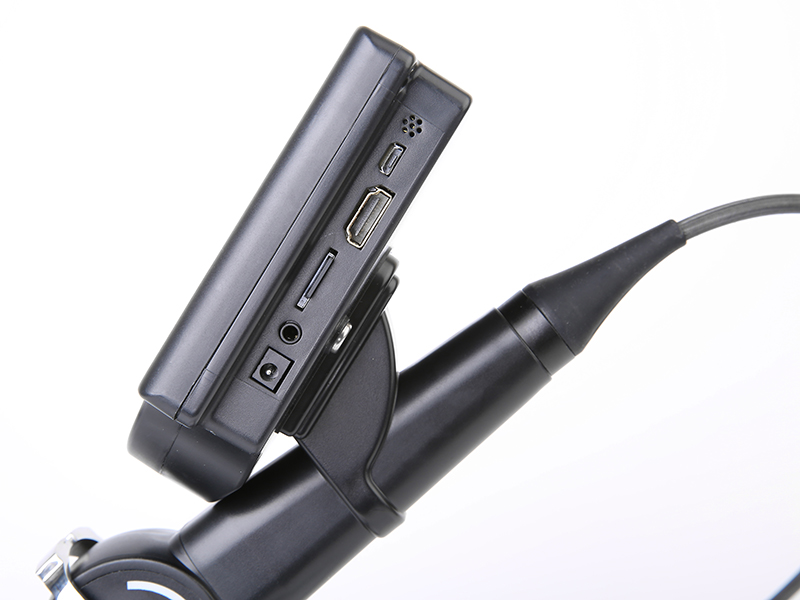

    Facilitates WiFi video transfer; interface with USB2.0; includes TF card slot, HDMI and 3.5mm headphone jack
    ECT40 Series HD Industrial Videoscope
Videoscope
Structure Integrated handheld videoscope Articulation 4-way 360° mechanical articulation
Probe Interchangeable probe with different diameters and lengths Light source White/IR/UV (optional)
Screen size 5 inch HD touch screen Battery Two rechargeable 18650 lithium-ion batteries, support AC adapter
Screen resolution 1080P HD Storage medium TF card
Probe material Tungsten braided probe, with waterproof coating Language Support English and Chinese
Video output HDMI/WiFi Videoscope size 330×140×105mm
Audio output 3.5mm headset, video & audio recording Total weight 0.85kg (battery included)
Interface USB2.0, TF card interface, HDMI, 3.5mm headset interface, WiFi (wireless) IP rating IP67 waterproof
Operation system Real-time multitasking operation system, supporting:Image aditing, Auto white balance (AWB), Color adjustment, Brightness adjustment, Scale, etc.
Probe
Probe diameter View angle Pixel Field of view (FOV) Depth of field (DOF) Effective working length Articulation Light source
1.2mm/1.5mm Forward view 160000 pixel 120° 5-100mm 600mm-1m No Optical fiber
2.0mm/2.4mm Forward view 160000 pixel/1 megapixel 120° 5-100mm 1m 180° Optical fiber
2.8mm Forward view 160000 pixel/1 megapixel 120° 5-100mm 1-1.5m 360° Optical fiber
3.9mm Forward view /side view/dual view 2 megapixel 120° 7-50mm/10-100mm/20mm-∞ 1-3m 360° LED/optical fiber (optional)
6.0mm Forward view /side view/dual view 2 megapixel 90°/120° 7-50mm/10-100mm/20mm-∞ 1-10m 360° LED/optical fiber (optional)
