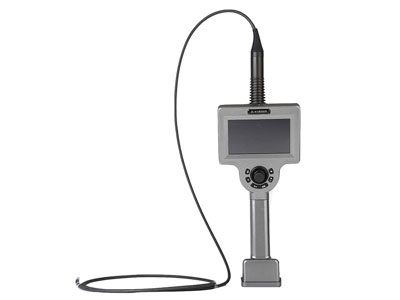

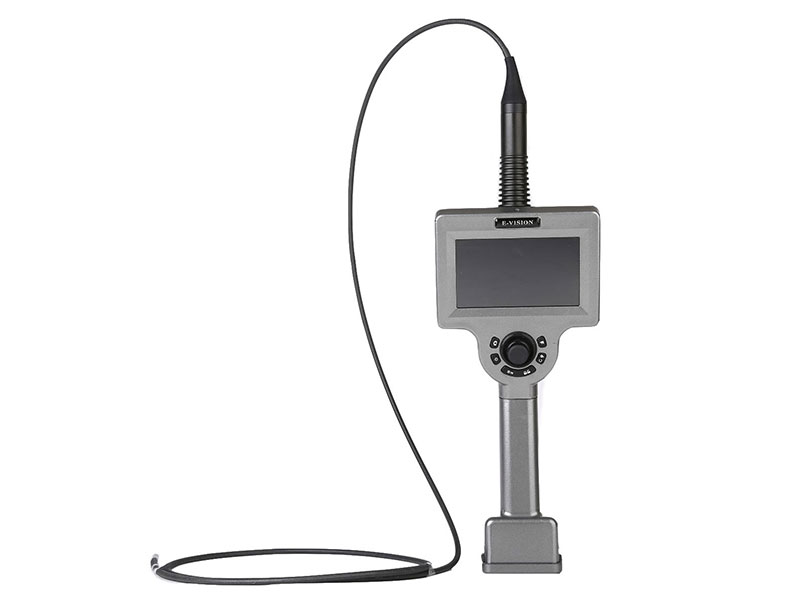

ET65 Series HD Industrial Videoscope/Endoscope
  • ET65 Series HD Industrial Videoscope/Endoscope
  • ET65 Series HD Industrial Videoscope/Endoscope
  • ET65 Series HD Industrial Videoscope/Endoscope

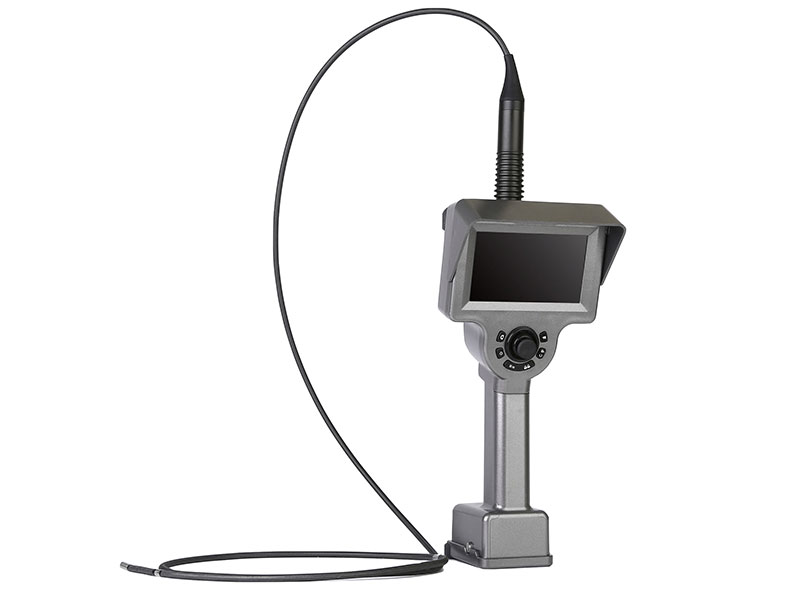

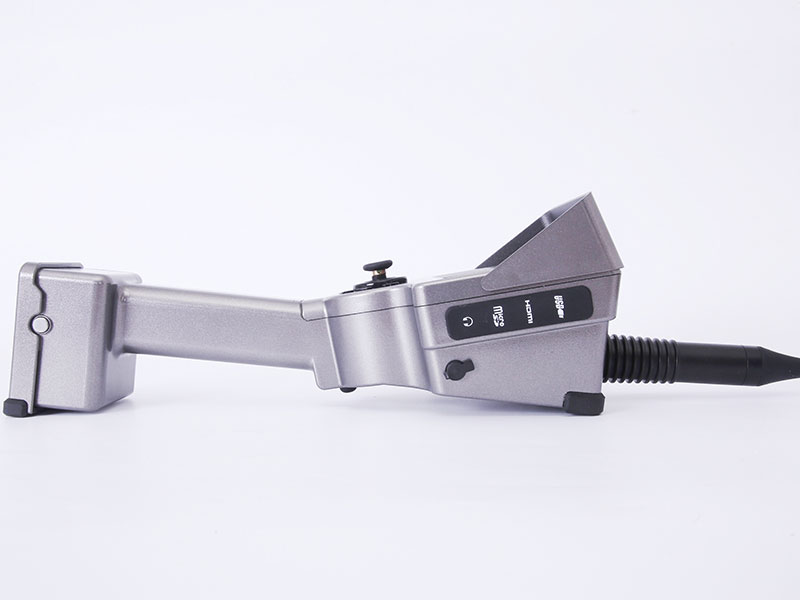

ET65 Series HD Industrial Videoscope/Endoscope

Specifications
  • Portable Design: Integrated handheld design
  • Display: 5-inch HD LCD touchscreen
  • Flexible Probe Diameter: 6.0mm/3.9mm/2.8mm/2.4mm/2.0mm/1.5mm/1.0mm
  • Resolution: Up to 1080P HD 2MP
  • Detachable Sun Visor
  • View Direction: Forward-view, side-view, dual direct/side-view cameras,
  • Articulation: 360° electrical or mechanical articulation
  • Multi-Spectrum Lighting: White/IR/UV light or dual light sources
  • Wireless: WiFi & bluetooth
  • Application: In industrial machinery; automotive; rail; marine sector; aerospace; electrical, nuclear power; construction; public security; military, law enforcement; and firefighting industries, etc
Request a Quote
Features
    Compatible with 6.0mm/3.9mm/2.8mm/2.4mm/2.0mm/1.5mm/1.0mm probe diameters with HD image resolution.
    ET65 Series HD Industrial Videoscope/Endoscope

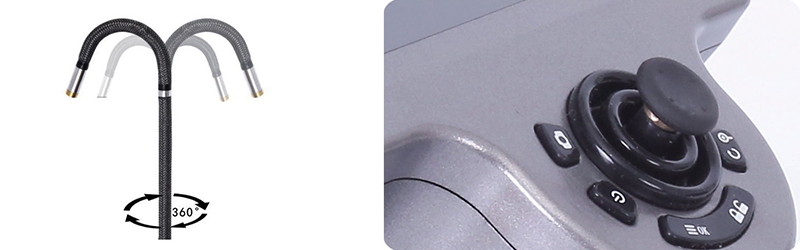

    360° Electronic Articulation with fast / slow / freezing mode
    ET65 Series HD Industrial Videoscope/Endoscope

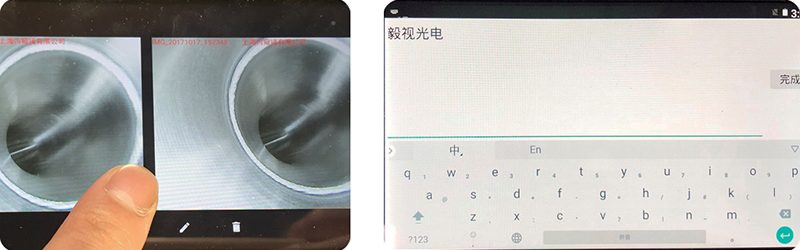

    Supports Left / Right split screen, multi-mode image processing and touchscreen keyboard input and editing.
    ET65 Series HD Industrial Videoscope/Endoscope

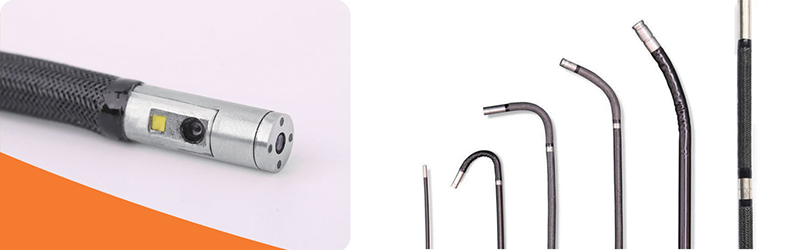

    Features forward-view, side-view, dual direct/side-view cameras, as well as white, infrared, ultraviolet, and dual light sources.
    ET65 Series HD Industrial Videoscope/Endoscope
Videoscope
Structure Integrated handheld videoscope Light Source White/IR/UV (optional)
Screen Size 5-inch HD touch screen Battery Two rechargeable 18650 lithium-ion batteries, support AC adapter
Screen Resolution 1080P HD Storage Medium TF card
Probe Material Tungsten braided probe, with waterproof coating Language Support 19 languages
Video Output HDMI/Wi-Fi/Bluetooth Videoscope Size 340×150×105 mm
Audio Output 3.5mm headset, video & audio recording Total Weight 1.3kg (battery included)
IP rating IP67 waterproof Interface USB2.0, TF card interface, HDMI, 3.5mm headset interface, Wi-Fi & Bluetooth (wireless)
Articulation 360° electrical articulation/mechanical articulation (optional) Operation system Real-time multitasking operation system, supporting: Image aditing, Image aditing, Brightness adjustment, Scale, Split screen view (left and right), Zoom in & out,Remote software upgrade
Probe
Probe diameter View angle Pixel Field of view (FOV) Depth of field (DOF) Effective working length Articulation Light source
1.2mm/1.5mm Forward view 160000 pixels 120° 5-100mm 600mm-1m No Optical fiber
2.0mm/2.4mm Forward view 160000 pixel / 1 megapixel 120° 5-100mm 1m 180° Optical fiber
2.8mm Forward view 160000 pixel / 1 megapixel 120° 5-100mm 1-1.5m 360° Optical fiber
3.9mm Forward view /side view/dual view 2 megapixels 120° 7-50mm/10-100mm/20mm-∞ 1-3m 360° LED/optical fiber (optional)
6.0mm Forward view /side view/dual view 2 megapixels 90°/120° 7-50mm/10-100mm/20mm-∞ 1-10m 360° LED/optical fiber (optional)
Related Products

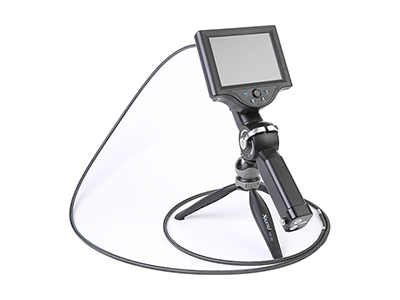

    1. ECT40 Series HD Industrial Videoscope
      ECT40 Series HD Industrial Videoscope
      1MP/2MP (megapixels)
      Four-way mechanical articulation
      Interchangeable probe
      5" HD touchscreen
      Learn More

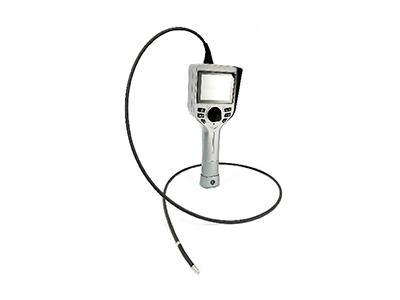

    1. ES60 Series HD Industrial Videoscope
      ES60 Series HD Industrial Videoscope
      1MP/2MP (megapixels)
      360° mechanical articulation
      Compact 3.5" HD touchscreen
      Learn More

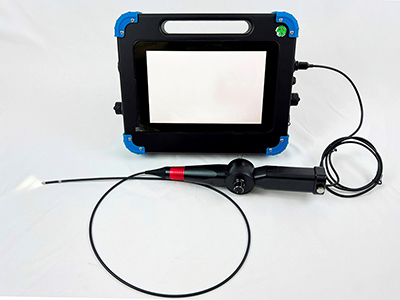

    1. ECP101 Series HD Desktop Industrial Videoscope
      ECP101 Series HD Desktop Industrial Videoscope
      1MP/2MP (megapixels)
      2.8GHz dual-core processor
      Compatible with flexible probes, rigid borescopes, and industrial cameras
      10.1" HD touchscreen control unit
      Learn More
Get in Touch

Looking to learn more about our range of videoscopes, borescopes, and inspection solutions? Do not hesitate to contact us for more information.

+86-21-59202639
+86-13621602777
samuel@es-scope.com
Other Visual Inspection Equipment
    1. Infrared Night Vision Borescope
      Infrared Night Vision Borescope
      Learn More

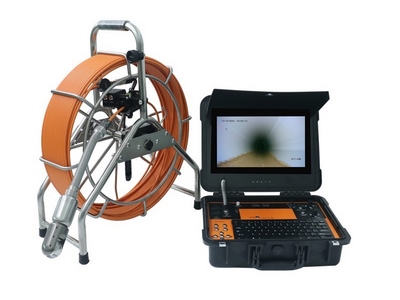

    1. Pipe Inspection Camera
      Pipe Inspection Camera
      Learn More

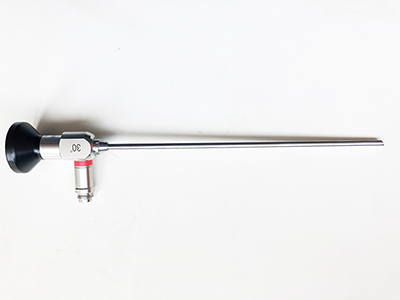

    1. Rigid Borescopes
      Rigid Borescopes
      Learn More

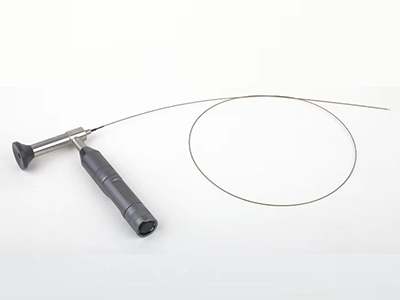

    1. ES078 Series Fiber Endoscope
      ES078 Series Fiber Endoscope
      Learn More

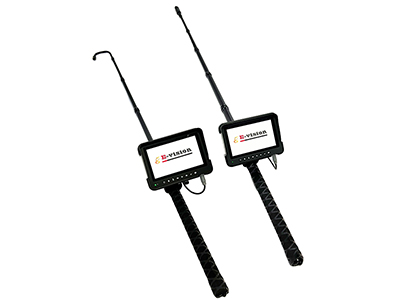

    1. 4K HD Telescopic Pole Camera
      4K HD Telescopic Pole Camera
      Learn More

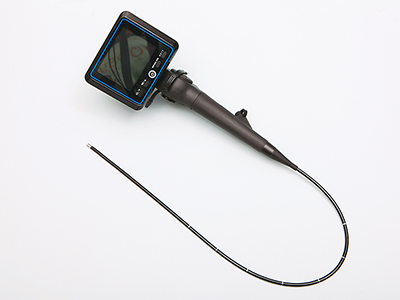

    1. Veterinary Endoscope
      Veterinary Endoscope
      Learn More
Visual Inspection Systems Designed for Real-World Needs

We see more than image. We see our clients' needs and actively innovate our technology to create more user-friendly solutions.

Learn All

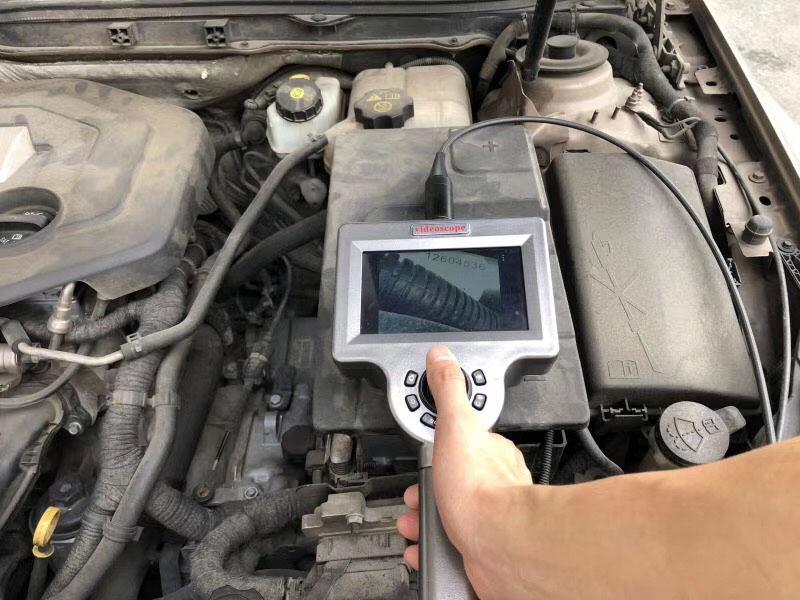

Automotive Automotive
Learn More

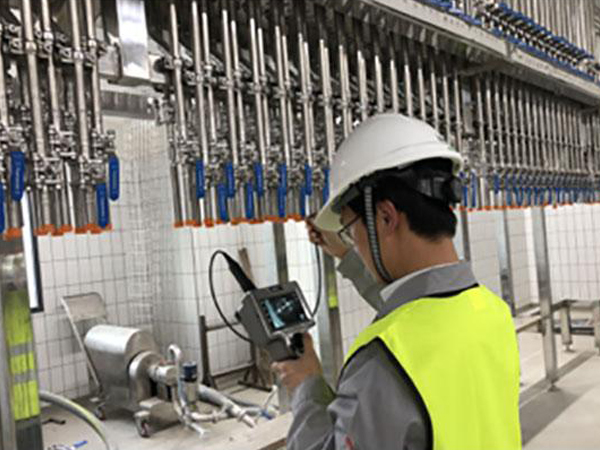

Machinery Machinery
Learn More
Military and Police Military and Police
Learn More
Electronics Electronics
Learn More

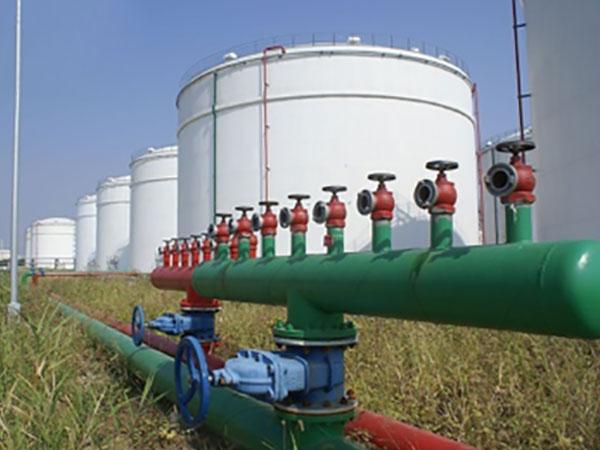

Oil and Gas Oil and Gas
Learn More

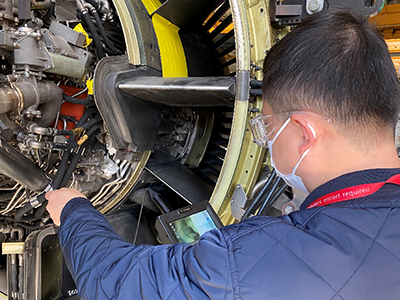

Aerospace Aerospace
Learn More

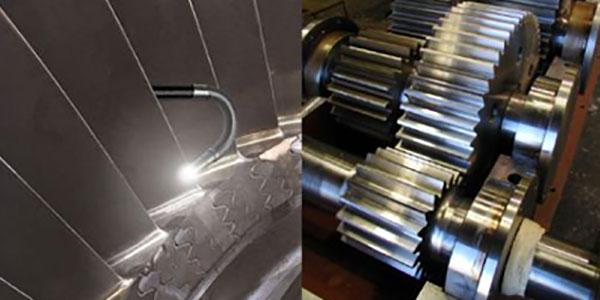

Railway Railway
Learn More

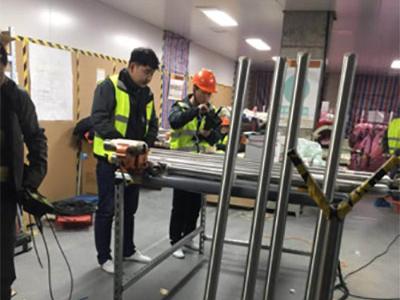

Architectural Architectural
Learn More

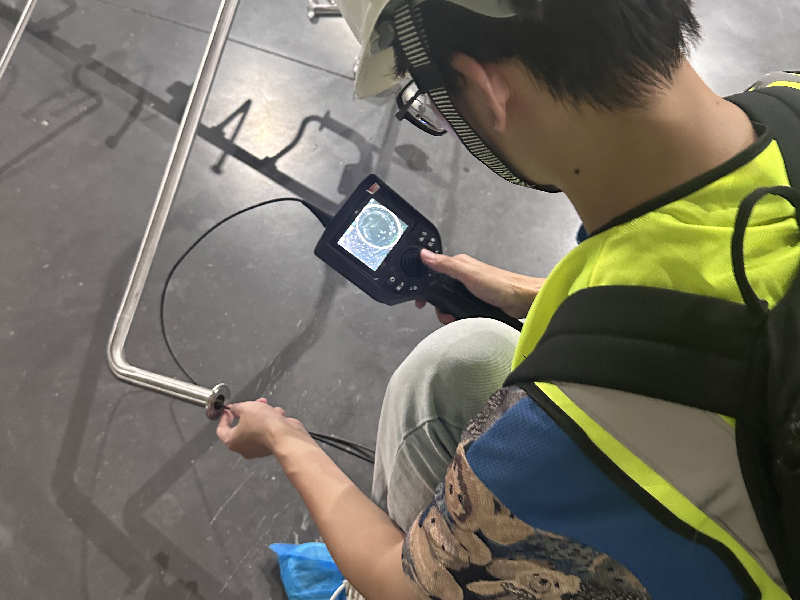

Water Supply Water Supply
