ES60 Series HD Industrial Videoscope
  • ES60 Series HD Industrial Videoscope
  • ES60 Series HD Industrial Videoscope
  • ES60 Series HD Industrial Videoscope
  • ES60 Series HD Industrial Videoscope

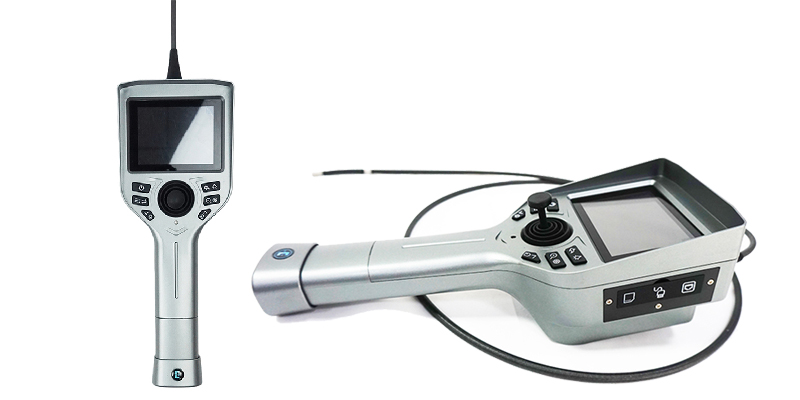

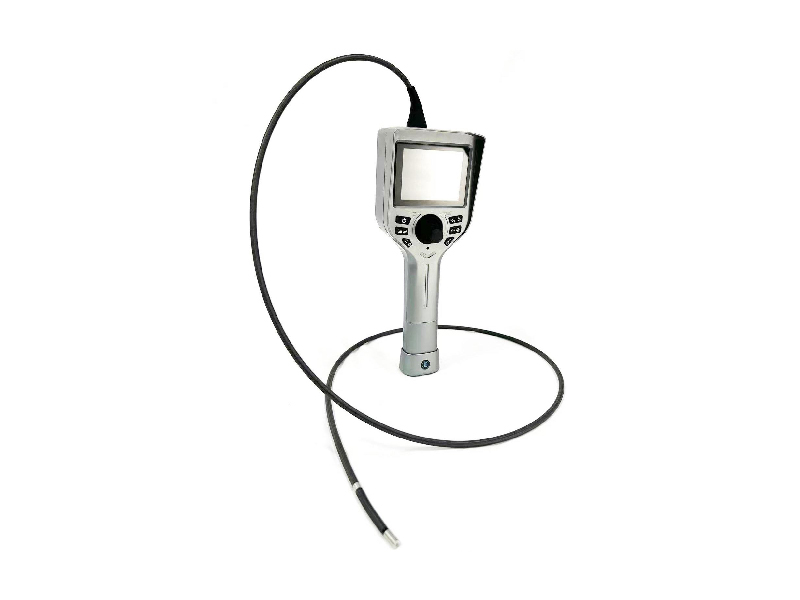

ES60 Series HD Industrial Videoscope

  • Portable Design: Integrated handheld design
  • Display: 3.5-inch HD LCD Screen
  • Probe Diameter: Interchangeable with 6.0mm/3.9mm/2.8mm/2.4mm/2.0mm/1.5mm/1.0mm
  • Resolution: Up to 1080P HD 2 MP
  • Supports USB external camera input
  • Battery Life: 8 hours
  • View Direction: Forward/side view

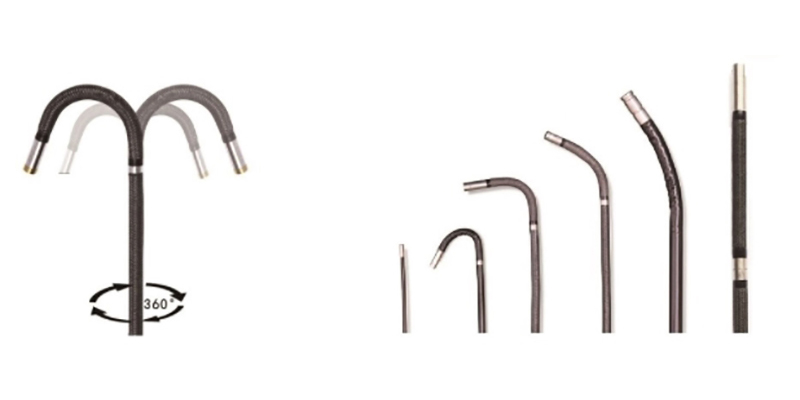

  • Articulation : 360°Joystick
  • Light Source: White/IR/UV light or double light
  • Application : In industrial machinery; automotive; rail; marine sector; aerospace; electrical, nuclear power; construction; public security; military, law enforcement; and firefighting industries, etc
Request a Quote
Features

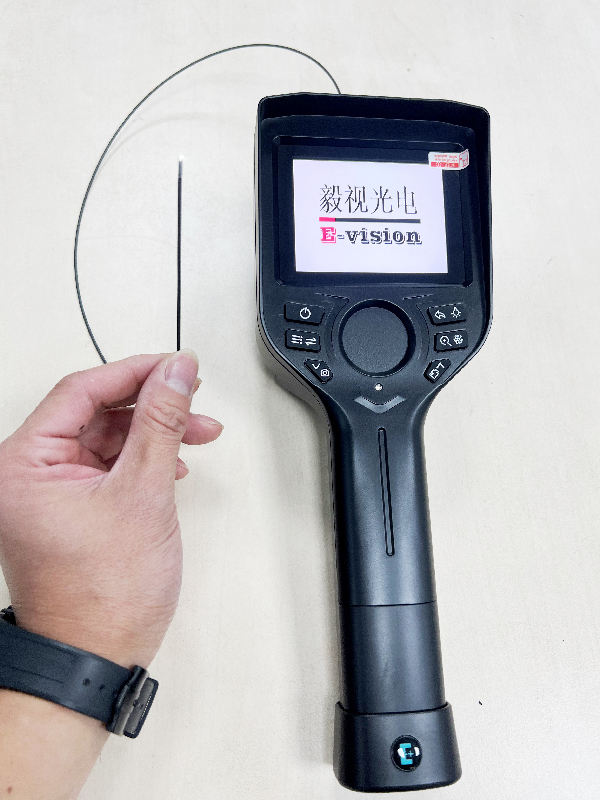

    Adaptable with probe diameters of 6.0mm;3.9mm;2.8mm;2.4mm;1.0mm and more, delivers HD image resolution
    ES60 Series HD Industrial Videoscope

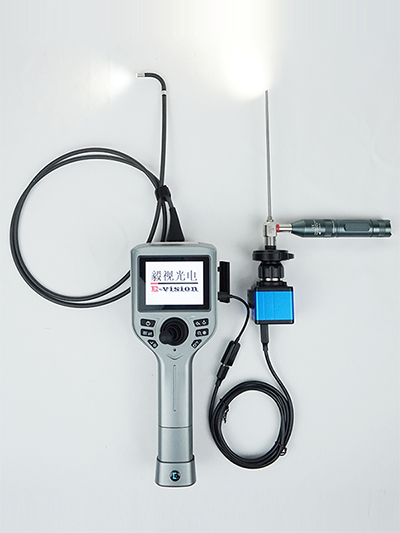

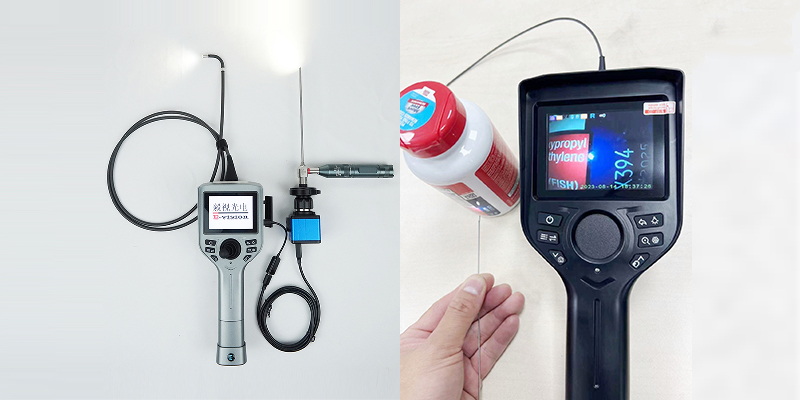

    Multi-function USB interface, supports external video input with industrial camera, rigid borescope, fiberscope, etc.
    ES60 Series HD Industrial Videoscope

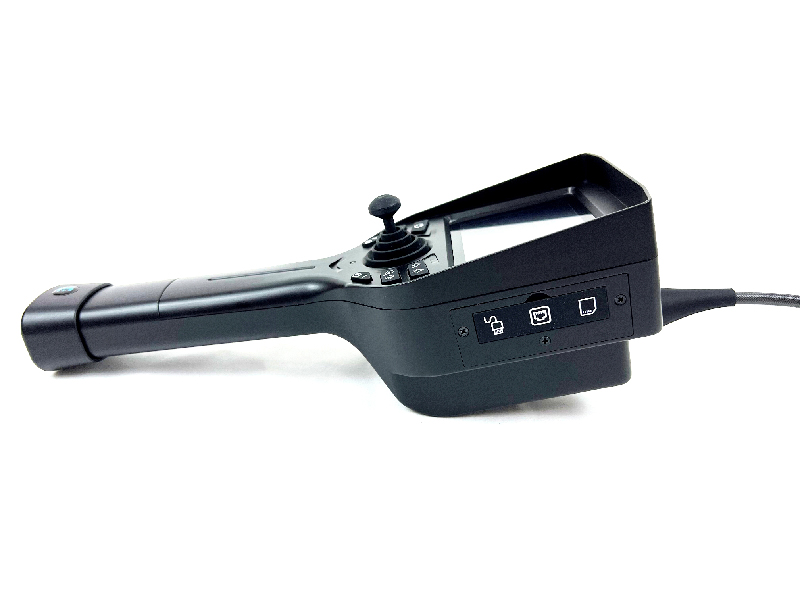

    Portable design with weighing only 0.7kg (with battery), 8 hours of long battery life.
    ES60 Series HD Industrial Videoscope
Specifications
Structure Integrated handheld videoscope Articulation 360° Joystick mechanical articulation
Screen size 3.5 inch HD screen Light source White/IR/UV (optional)
Screen resolution 1080P HD Battery Two rechargeable 18650 lithium-ion batteries, support AC adapter
Probe material Tungsten braided probe, with waterproof coating Storage medium TF card
Video output HDMI Language Supports 6 languages
Audio output 3.5mm audio jack, video & audio recording Videoscope size 330×105×100mm
IP rating IP67 waterproof Total weight 0.7kg (battery included)
Interface USB2.0 (support external video input), TF card interface, HDMI, 3.5mm headset interface Operation system Multitasking operation system, supporting: Image aditing, Color adjustment, Brightness adjustment, Sharpness adjustment, Scale, etc.
Probe Specifications
Probe diameter View angle Pixel Field of view (FOV) Depth of field (DOF) Effective working length Articulation Light source
1.2mm/1.5mm Forward view 160000 pixel 120° 5-100mm 600mm-1m No Optical fiber
2.0mm/2.4mm Forward view 160000 pixel / 1 megapixel 120° 5-100mm 1m 180° Optical fiber
2.8mm Forward view 160000 pixel / 1 megapixel 120° 5-100mm 1-1.5m 360° Optical fiber
3.9mm Forward view /side view/dual view 2 megapixel 120° 7-50mm/10-100mm/20mm-∞ 1-3m 360° LED/optical fiber (optional)
6.0mm Forward view /side view/dual view 2 megapixel 90°/120° 7-50mm/10-100mm/20mm-∞ 1-3m 360° LED/optical fiber (optional)
