SK7 Serial HD 3D Measurement Videoscope
  • SK7 Serial HD 3D Measurement Videoscope
  • SK7 Serial HD 3D Measurement Videoscope
  • SK7 Serial HD 3D Measurement Videoscope
  • SK7 Serial HD 3D Measurement Videoscope

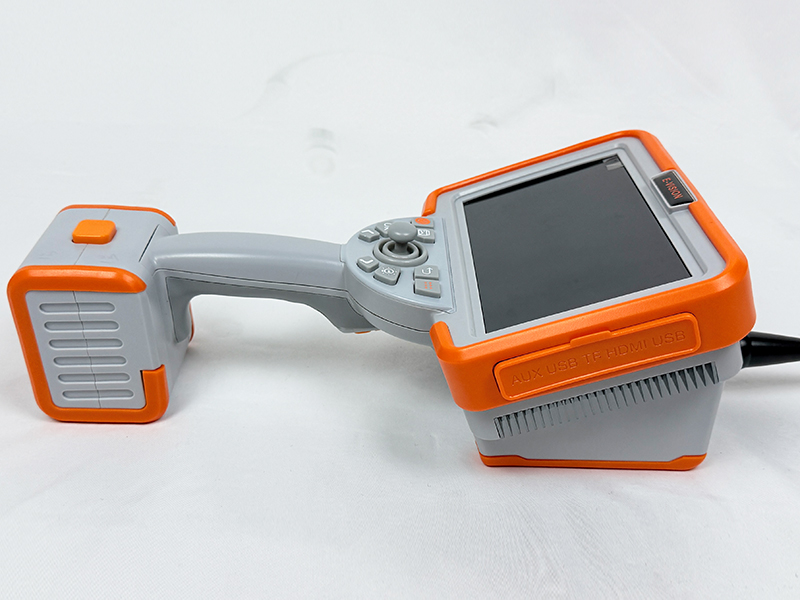

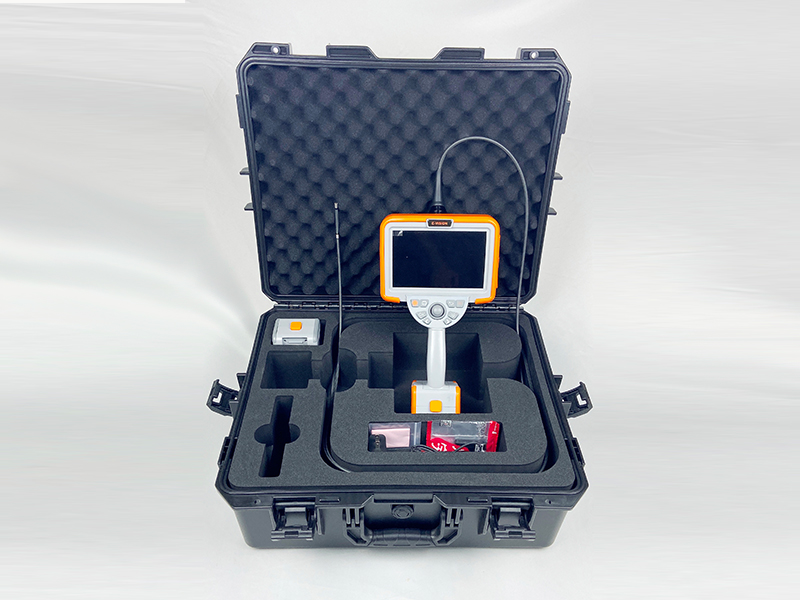

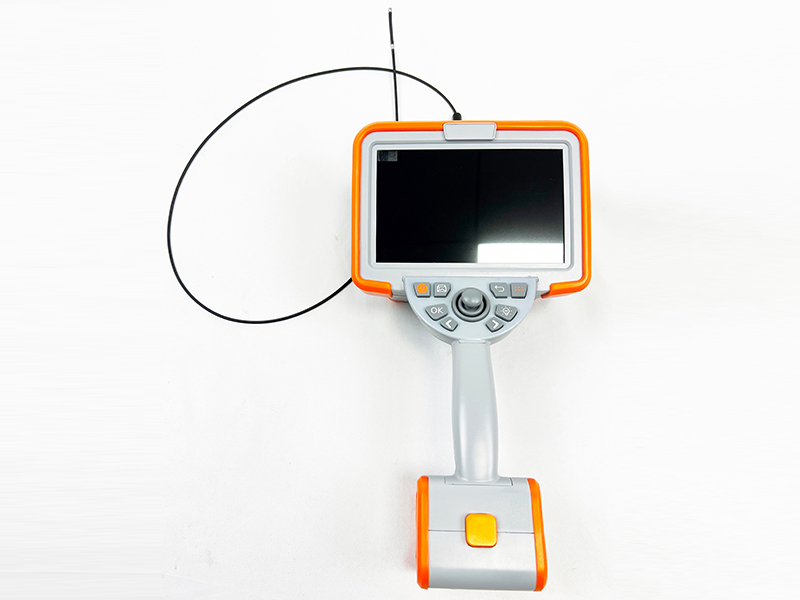

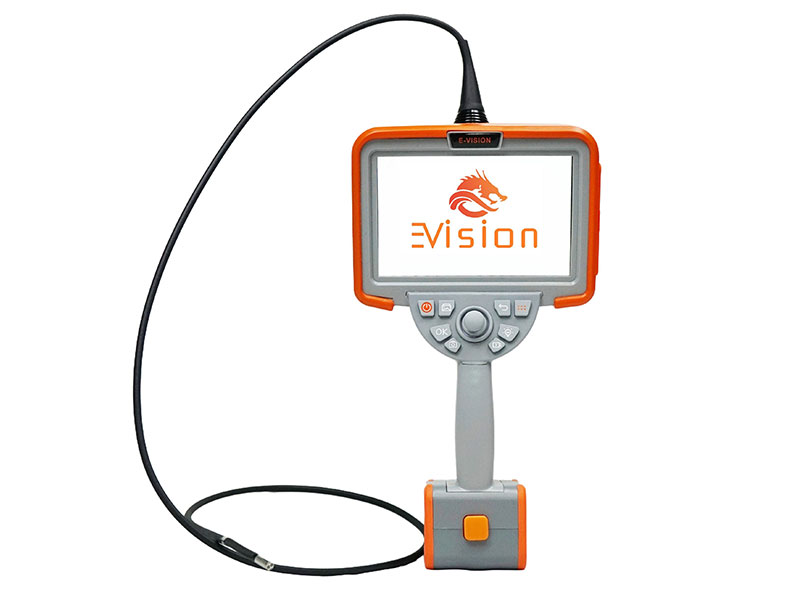

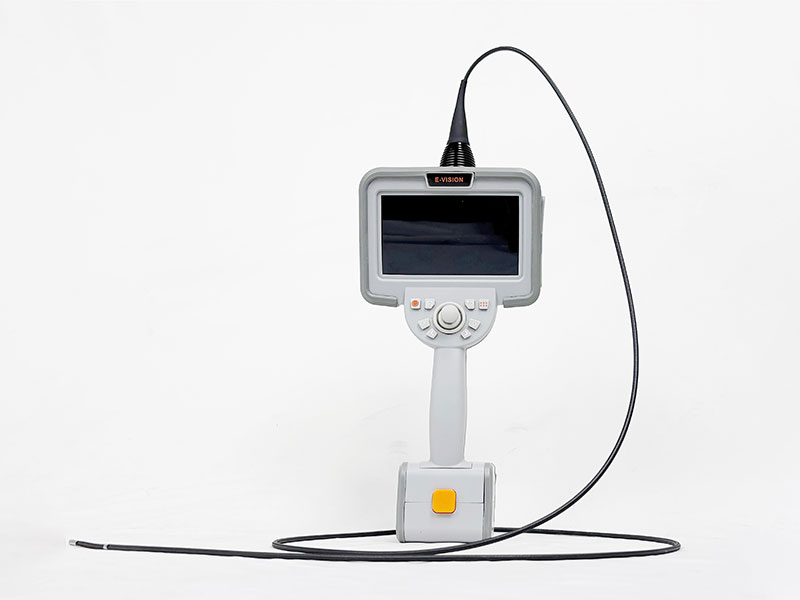

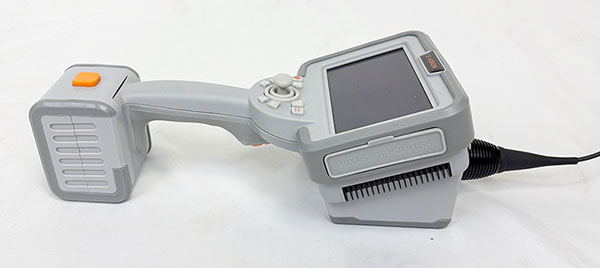

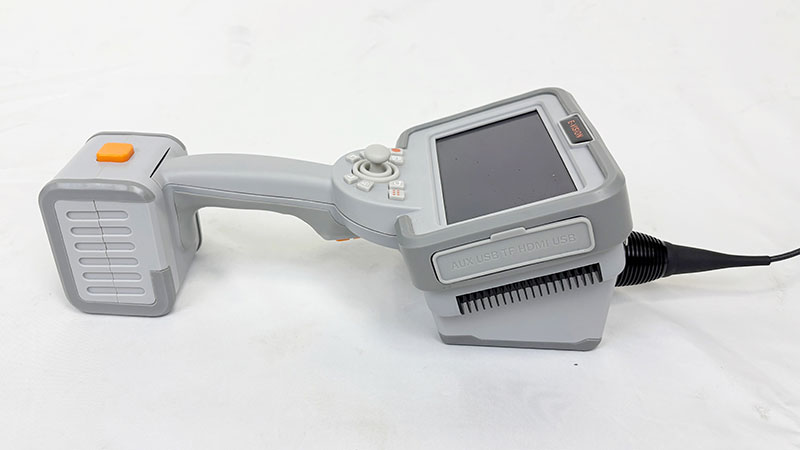

SK7 Serial HD 3D Measurement Videoscope

The SK7 series is a high-performance HD videoscope designed for visual inspection of internal equipment and components. It utilizes advanced image sensing technology for enhanced clarity and features a built-in 3D stereoscopic measurement algorithm for precise internal target measurement. This system is designed for applications in aerospace, precision inspection, and other specialized fields.

This versatile, all-in-one videoscope solution supports both short-distance industrial inspection (1–15 meters) and medium-to-long-distance pipeline inspection (10–30 meters). /Its multifunctional design is intended to improve inspection efficiency and expand its range of applications.

Request a Quote
Parameters
Overall Structure Handheld integrated host Articulation Control 360° multi-mode electronic control: fast/slow/fine-tune
Screen Size 7-inch HD LCD touch screen Light Source Type White/Infrared/Ultraviolet/Dual-light optional
Host Functions Supports 3D stereoscopic measurement; supports multitasking, picture-in-picture dual screen Probe Compatibility Supports interchangeable probes of different diameters and lengths
Screen Resolution 1080P HD Battery Capacity 7000mAh customized lithium battery, supports AC adapter
Probe Material Wear-resistant tungsten wire braided tube + waterproof coating Storage Medium Built-in storage/U-disk/TF memory card
Video Output HDMI, WiFi, Bluetooth Menu Language Supports 8 languages
Audio Output 3.5mm headphone output; video recording with sound Overall Dimensions 340 x 195 x 130 mm
IP Rating Probe and probe line can withstand IP67 waterproof and dustproof Overall Weight 2.1kg (including battery)
Host Interfaces USB3.0, TF card slot, HDMI, 3.5mm headphone jack, WiFi and Bluetooth (wireless)
Operating System Real-time multitasking operation, supports: 3D stereoscopic measurement, defect recognition, image editing, color adjustment, brightness adjustment, scale ruler, left/right split-screen comparison, multi-touch zoom in/out, wireless remote program upgrade, etc.

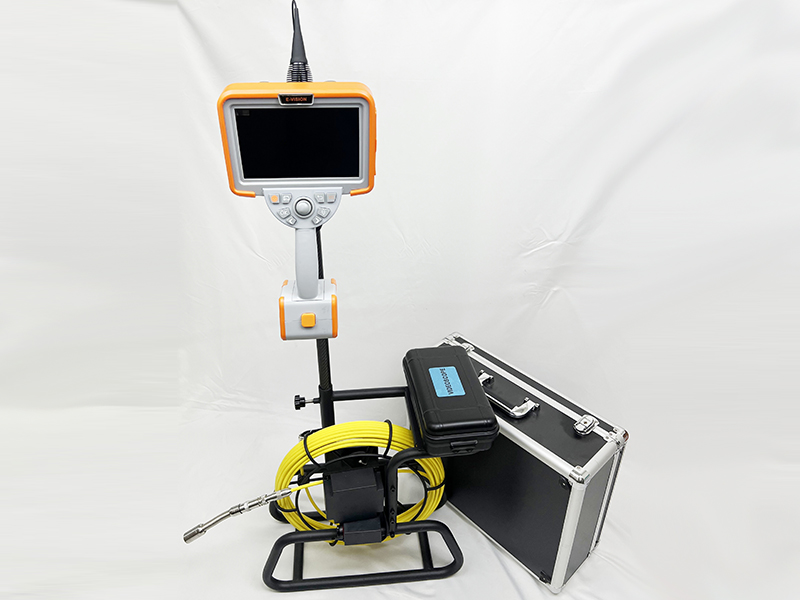

Compatible with 1.0mm–8.0mm videoscope probe systems (1–15 meters); compatible with 23mm and 40mm 4K HD pipeline scope long-line systems (10–30 meters, with 360° radial/axial rotation, and a meter counting function).
Interchangeable Videoscope Probe System
Probe Diameter (mm) 1.2mm/1.5mm 2.0mm/2.4mm 2.8mm 3.9mm 6.0mm
View Direction Forward Forward Forward Forward/Side/F&S Dual Cam Forward/Side/F&S Dual Cam
Pixels 160,000 Pixels 160,000 Pixels / 1 Megapixel 160,000 Pixels / 1 Megapixel 2 Megapixels 2 Megapixels
Angle of View (FOV) 120° 120° 120° 120° 90° / 120°
Depth of Field (DoF) 5mm-100mm 5mm-100mm 5mm-100mm 7mm-50mm / 10mm-100mm / 20mm-∞ 7mm-50mm / 10mm-100mm / 20mm-∞
Effective Working Length 600mm-1 meter 1 meter 1-1.5 meters 1-3 meters 1-15 meters
Articulation Non-articulated 180° Articulation 360° Articulation 360° Articulation 360° Articulation
Light Source Type Fiber Optic Fiber Optic Fiber Optic LED / Fiber Optic (Optional) LED / Fiber Optic (Optional)
Boroscope Interchangeable Probe
23mm Camera 40mm Camera
Forward 360° Rotatable
1080P 4K 1080P 4K
120° 120°
80mm-∞ 150mm-∞
10–30 meters 10–30 meters
Non-articulated 360° Articulation
LED LED
Features
  • 7-inch full-view IPS LCD touchscreen, supports visual icon-based control interface, interchangeable probe cables, modular design for portability and easy operation.
    Replaceable optional probe cable design; supports 360° digital stepper motor with multi-mode electronic articulation; free-angle positioning; variable speed control and freeze function; supports HD probe cables of 1–15m length.
  • Versatile borescope system with HD probes, dual-camera lenses, and advanced lighting options
    1. -Supports 6.0mm and 4.0mm dual-camera measurement lenses (optional).
    2. -Supports 6.0mm, 3.9mm, 2.8mm, 2.4mm, 2.0mm, and 1.0mm direct-view HD probes with front-end temperature detection.
    3. -Supports 6.0mm and 3.9mm side-view dual-camera HD probes (optional).
    4. -Supports 5600K white light, 940nm non-glare infrared night vision, and UV industrial flaw-detection light source.
    5. -Optional 10m–30m long-distance borescope reel, equipped with 4K HD 23mm and 40mm 360° omni-directional articulation camera systems.
  • Supports industrial endoscope 3D measurement system V1.0, providing high-precision global 3D scanning cloud maps, 3D measurement, with relative error ≤5% (optional).
  • Supports real-time intelligent analysis system V1.0 for metal surface defect detection (optional).
  • Built-in intelligent inspection operating system: image adjustments include camera parameter settings (brightness, contrast, gamma, hue, saturation, sharpness), auto white balance, image negative filter, flip and mirror, freeze, annotation/drawing, timestamp marking, etc.
  • Supports brightness adjustment via finger swipe, auto white balance calibration at any touchpoint.
  • Supports split-screen view, picture-in-picture, finger zoom and move, and one-click custom report generation in multiple editable formats.
  • Built-in storage of 20GB+, with support for TF card and external USB drive.
  • One-touch battery status display, lithium battery supports PD fast charging.
  • Wireless WiFi & Bluetooth HD video sharing; photo, video, and audio recording with playback.
Applications

This product is designed for real-time visual inspection in environments that are difficult for the human eye to access, such as small spaces, deep pipes, or dark rooms. It utilizes both invisible infrared light and white fill light to capture clear images in completely dark or inaccessible conditions.
The main application areas include:

  • Automotive & Components: Quality inspection and assembly checks for engines, hydraulic parts, and nozzles.
  • Industrial & Pharmaceutical Machinery: Inspection of boilers, heat exchangers, mechanical equipment, and manufacturing devices.
  • Petrochemical: Inspection of process pipelines, pressure vessels, boilers, and heat exchangers.
  • Electronics & Electrical: Inspection of mechanical operations and components, as well as use in research and development.
  • Gas Utilities: Used to check gas pipes for rust, corrosion, water accumulation, and to inspect for damage to exhaust vents.
  • Aviation & Aerospace: Routine inspection of turbines, blades, and combustion chambers; aircraft fuselage checks; and R&D for rocket engines.
  • Rail & Marine: Inspection of turbines, heaters, diesel engines, boiler flames, and pipelines.
  • Construction: Internal diagnostics for steel pipes (rust and dirt), walls, rebar, and bridge joint cracks. Also used for observing internal tunnel cavities and architectural models.
  • Water Utilities: Diagnosis of rust and blockages in water and drainage pipes.
  • Power Generation: Inspection and maintenance of heat exchangers, pipelines, and turbines in thermal, hydro, and nuclear power plants.
