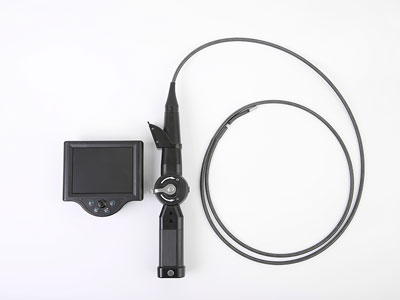

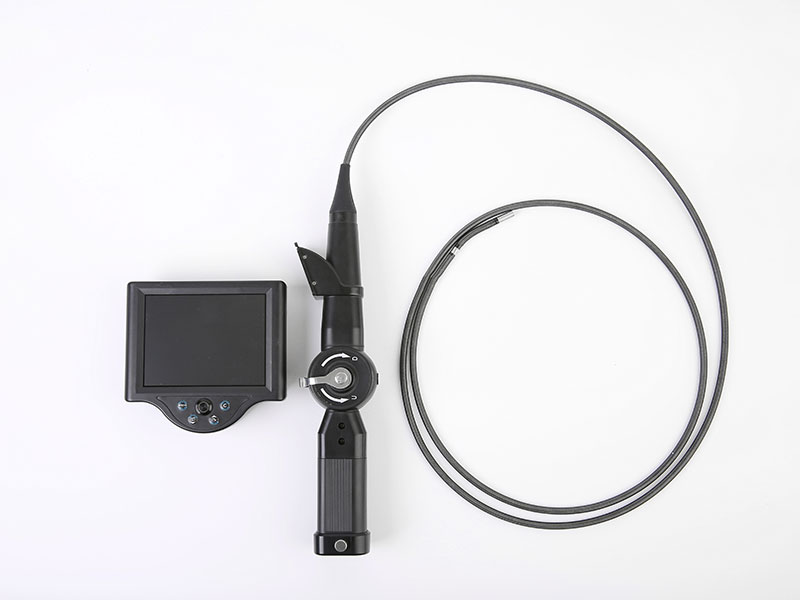

EC60-IR Infrared Night Vision Borescope/Endoscope
  • EC60-IR Infrared Night Vision Borescope/Endoscope
  • EC60-IR Infrared Night Vision Borescope/Endoscope
  • EC60-IR Infrared Night Vision Borescope/Endoscope
  • EC60-IR Infrared Night Vision Borescope/Endoscope

EC60-IR Infrared Night Vision Borescope/Endoscope

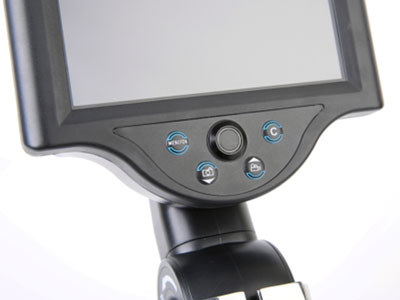

  • Portable Design: Integrated handheld design

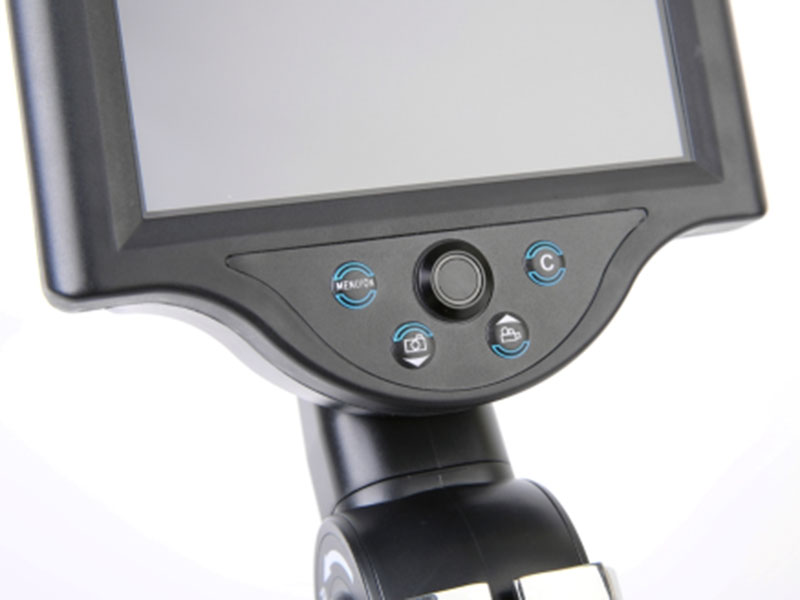

  • Display: 5-inch HD LCD touchscreen

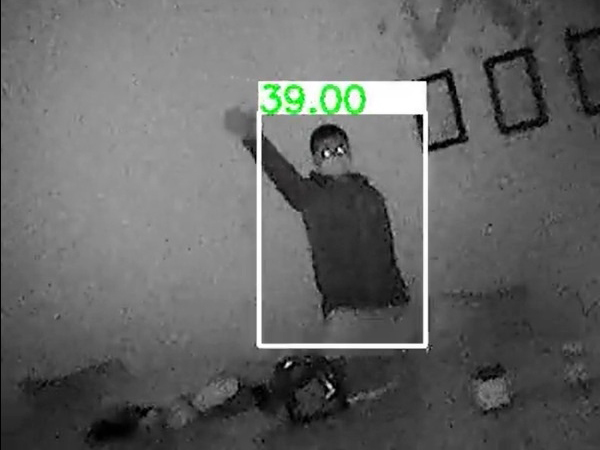

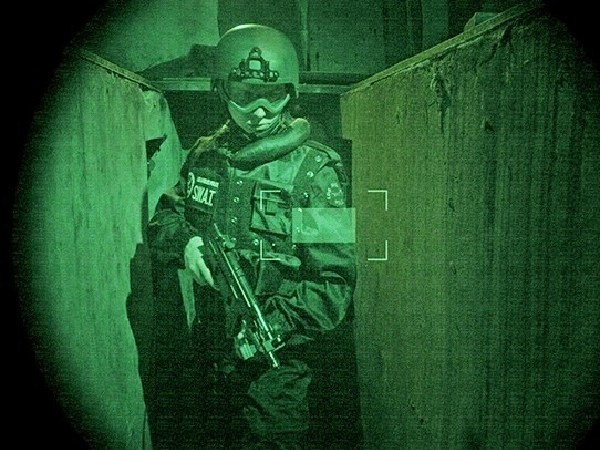

  • Lighting Source: Supports 6.0mm probe with 940nm IR & white dual light; 3.9mm IR night vision probe with a range up to 10 meters.
  • Resolution: Up to HD 1 mega-pixel
  • Replaceable probe: Supports various diameters
  • Articulation: 4-way machnical articulation
  • View Direction: Supports forward/side/multi-view camera
  • Wireless: WiFi/ bluetooth transmission, video & audio recording capability
  • Application : Public security; military, police and firefighting industries. This model has been certified by the Ministry Public Security.
Request a Quote
  • EC60-IR Infrared Night Vision Borescope/Endoscope
  • EC60-IR Infrared Night Vision Borescope/Endoscope
  • EC60-IR Infrared Night Vision Borescope/Endoscope
Specifications
Categories  Police Security Endoscope
Model  EC60-IR View direction  direct view
Probe Diameter  6.0mm (940nm IR and light dual lights), 3.9mm(940nm IR lights) Articulation  4-way mechanical control articulation
Interchangeability  interchangeable probe design Screen  5-inch high brightness TFT screen
Sheath  tungsten braid, durable 4-layer construction Memory  16G, up to 128G support

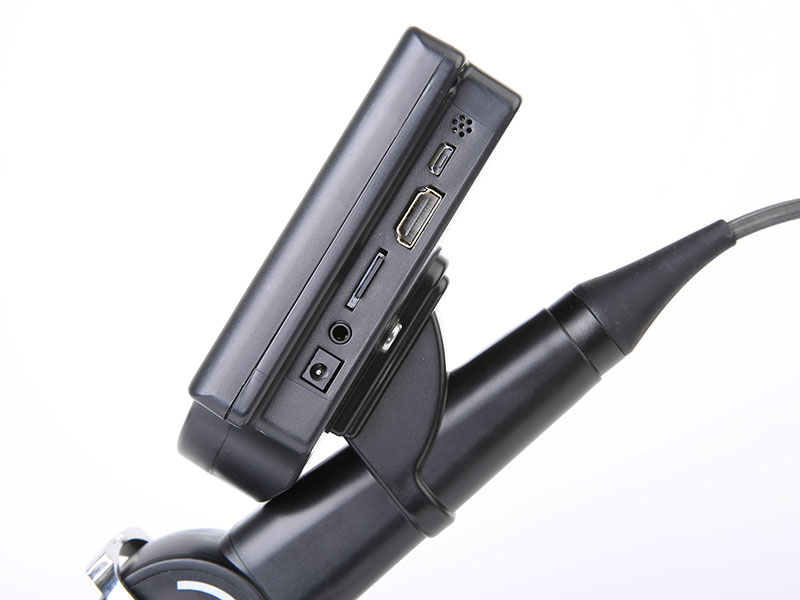

Camera Pixel  1280*720 (6.0mm)/ 400*400 (3.9mm) Output interface  HDMI, TF card, USB 2.0, 3.5mm headphone
DOF  20mm-∞ (clear night vision for objects 10 meters away) Power  18650 Li-battery*2 pcs, or 8.4V DC, 8hrs running time
FOV  85° IP level  IP67 (probe/camera)
