ES60-IR Infrared Night Vision Borescope/Endoscope
  • ES60-IR Infrared Night Vision Borescope/Endoscope
  • ES60-IR Infrared Night Vision Borescope/Endoscope
  • ES60-IR Infrared Night Vision Borescope/Endoscope
  • ES60-IR Infrared Night Vision Borescope/Endoscope

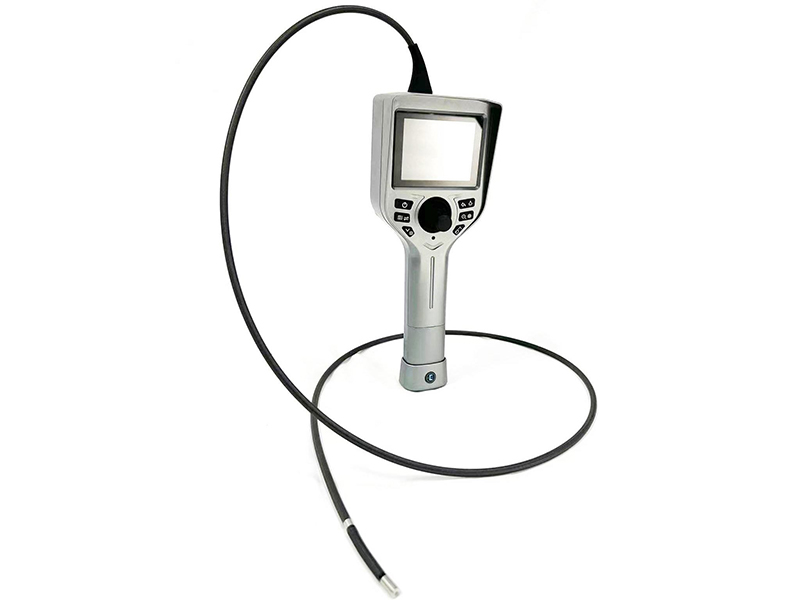

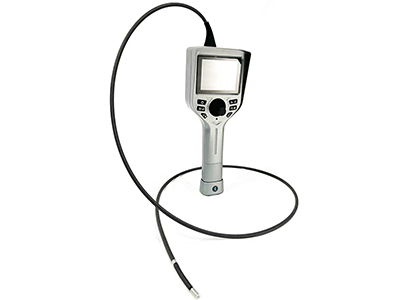

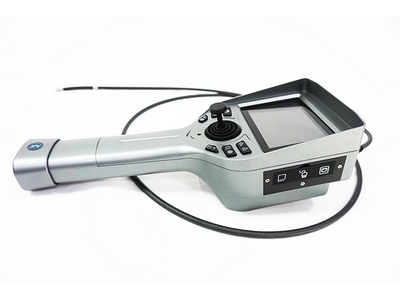

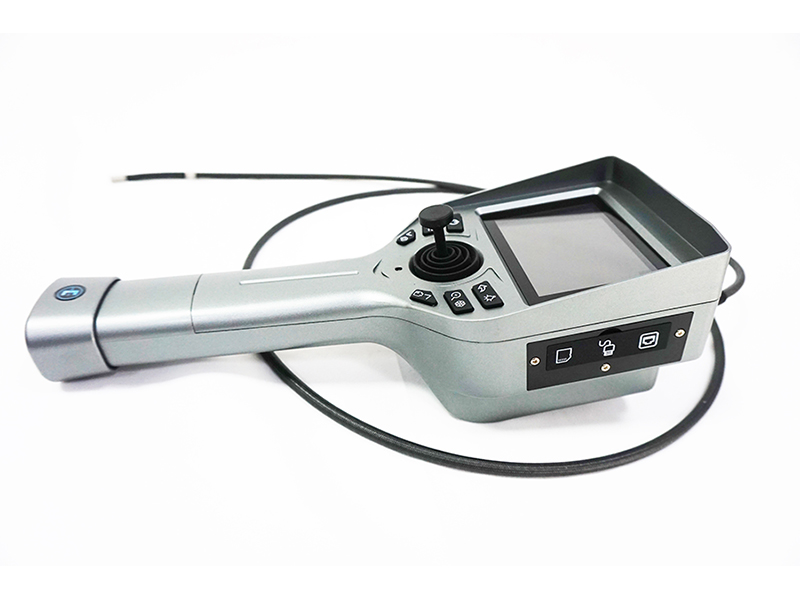

ES60-IR Infrared Night Vision Borescope/Endoscope

  • Portable Design: Integrated handheld design
  • Display: 3.5-inch HD LCD touchscreen
  • Lighting Source: Supports 6.0mm probe with 940nm IR & white dual light; 3.9mm IR night vision probe with a range up to 10 meters.
  • Resolution: Up to HD 1 mega-pixel
  • Battery Life: 8-hour
  • Articulation: 360°joystick articulation
  • View Direction: Supports forward/side/multi-view camera

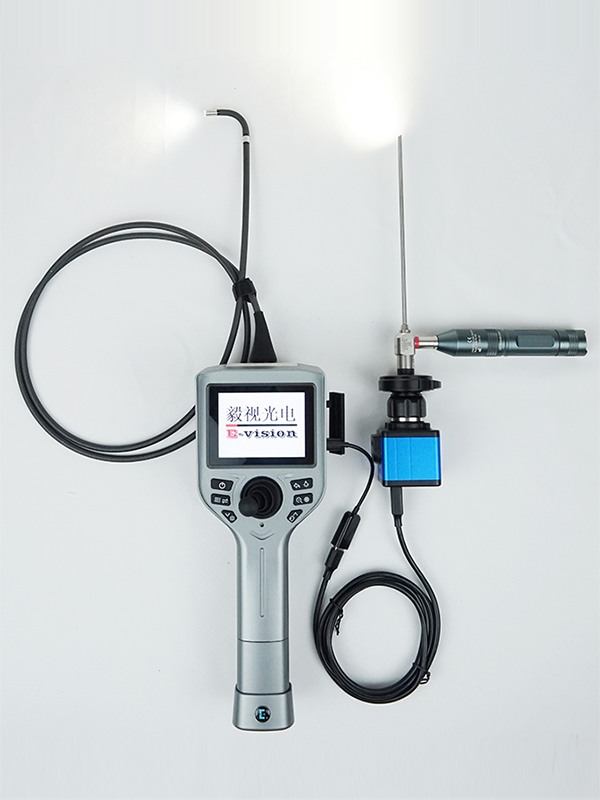

  • External Input: Supports external USB camera input
  • Application: Public security; military, police and firefighting industries.
Request a Quote
  • ES60-IR Infrared Night Vision Borescope/Endoscope
  • ES60-IR Infrared Night Vision Borescope/Endoscope
  • ES60-IR Infrared Night Vision Borescope/Endoscope
Probe Specifications
Probe diameter View angle Pixel Field of view (FOV) Depth of field (DOF) Effective working length Articulation Light source
1.2mm/1.5mm Forward view 160000 pixel 120° 5-100mm 600mm-1m No Optical fiber
2.0mm/2.4mm Forward view 160000 pixel / 1 megapixel 120° 5-100mm 1m 180° Optical fiber
2.8mm Forward view 160000 pixel / 1 megapixel 120° 5-100mm 1-1.5m 360° Optical fiber
3.9mm Forward view /side view/dual view 2 megapixel 120° 7-50mm/10-100mm/20mm-∞ 1-3m 360° LED/optical fiber (optional)
6.0mm Forward view /side view/dual view 2 megapixel 90°/120° 7-50mm/10-100mm/20mm-∞ 1-3m 360° LED/optical fiber (optional)
